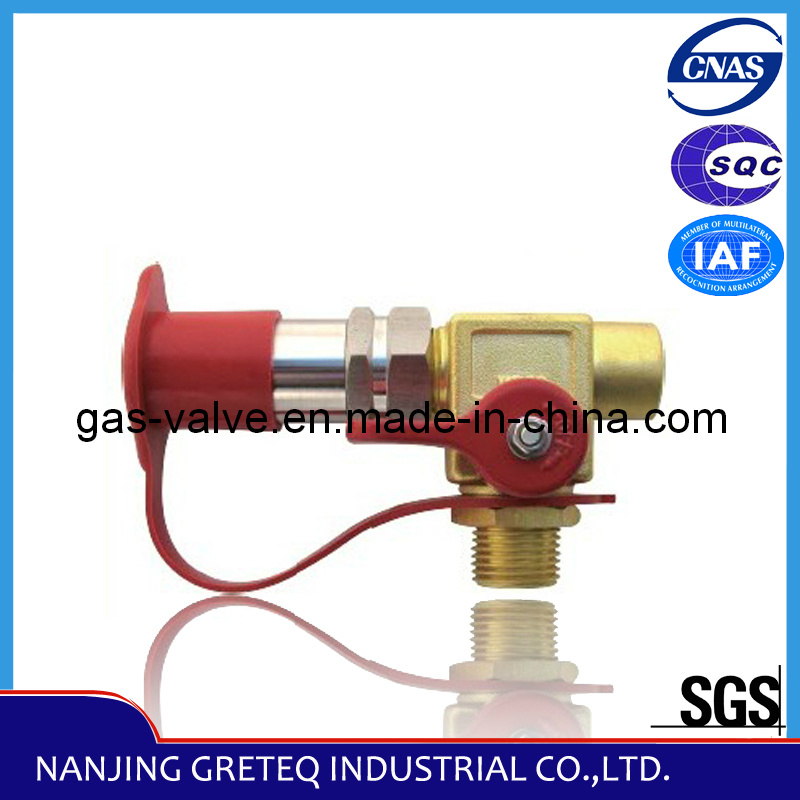

QF-T1H4 CNG Cylinder Filling Valve with Nozzle (CNG car)

QF-T1H4 CNG Cylinder Filling Valve with Nozzle (CNG car)
Price: US $ 14-16/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P
QF-T1H4 CNG Cylinder Filling Valve with Nozzle (CNG car)

1: Specifications
Filling nozzle with 1/4 turn valve.
We can supply two kind of diameter nozzle, 25mm or 24mm can suitable to P30 and P36 gas station.
1)Suitable Medium: Nature gas
2)Working Pressure: 20Mpa
3)nominal diameter: DN5mm
4)Joint thread: Female thread M12*1
5)Thread joint to cylinder: G1/2
6)Safty device: None

2: Packaging & Delivery
Packaging Details: 25sets/carton
Delivery Detail: Within 15days
3: Certificate
SQC certificate for quality management system, has complied with the requirements of GB/T 19001-2000 idt ISO 9001: 2000
Manufacture License of Special equipment in People's Republic of China, The Number is TSF210024-2012
NO. Type  No. Produce Name suitable
Medium
PN
(Mpa)
DN
(mm)
Outlet thread(mm) Jiont Thread to
cylinder (mm)
Temp./Pressure of safety
device
1 QF-T1 CNG Valve Used in Vehicle Cylinder
(20MPa)1/4turn ball valve
CNG 20 4 Female Thread 2-NPT1/4 PZ27.8 33±3Mpa 100deg ±5deg
2 QF-T1A CNG Valve Used in Vehicle Cylinder
 (20MPa)1/5turn ball valve
CNG 20 4 Female Thread 2-NPT1/4 PZ27.8 33±3Mpa 100deg ±5deg
3 QF-T1B Brass CNG Auto Cylinder Valve with
connector
CNG 20 4 2-w21.8 x1/14-LH PZ27.8 33±3Mpa 100deg ±5deg
4 QF-T1C Brass CNG Car Cylinder Valve (20MPa,
1/4 turn ball valve used in car)
CNG 20 4 2-NPT1/4 PZ27.8 33±3Mpa 100deg ±5deg
5 QF-T1D CNG Commercial Vehicle Valve for
 Gas Cylinder
CNG 20 4 Female Thread 2-M12 X 1.25 M20 X 1.5 None
6 QF-T1E  Auto CNG Valve for auto gas cylinder CNG 20 4 Female Thread 2-NPT1/4 M20 X 1.5 33±3Mpa 100deg ±5deg
7 QF-T1F  Brass Cng Ball Valve for CNG cylinder
(20MPa)
CNG 20 4 Female Thread 2-NPT1/4 m25 x 1.5 33±3Mpa 100deg ±5deg
8 QF-T1H Natural Gas Filling Valve(11mm hole,
used in India market)
CNG 20 4 Female Thread 2-M12 X 12.5 G1/2 None
9 QF-T1H2 Natural Gas Pipeline Valve (Indian type) CNG 20 4 Female Thread M12 X 1 G1/2 None
10 QF-T1H3 CNG Filling Valve for Vehicle(20MPa ball valve) CNG 20 4 Female Thread M12 X 1 1/2-14BSP None
11 QF-T1H4 CNG Fuel Fill valve with nozzle(P30/P36 Auto parts) CNG 20 4 Female Thread M12 X 1 G1/2 None


Prod Model: QF-T1H4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power: Manual
Structure: Ball
Pressure: High Pressure
Temperature Of Media: Normal Temperature
Port Size: Outlet Female Thread 2-M12*1.25, Inlet M20*1.5
Loading Port: Shanghai
Delivery Time: Within 10 Days
Material: Brass, Brass Hpb59-1
We Nanjing Greteq Industrial Co., Ltd have a long history in China. Now we have two mainly products: Ductile iron pipe/fittings and gas cylinder valve/gas equipment.

In ductile iron pipe/fitting department we use the lost-foam casting process and resin bonded sand process and make production and inspection strict according to ISO2531, BSEN545, BSEN598 and GB/T13295 standard. It annually produces 200000 tons of ductile iron pipe and 15000 tons pipe fitting The diameter are from 80-2600. We have a owned ductile iron pipe factory and several cooperative iron pipe and fitting factory, So we can meet your big quantity order and supply all diameter size ductile ion pipe and fitting to you in short times. Our goods are only for export and had succeeded exported to America, Europe, Africa, Oceania, Southeast Asia and the Middle East.

In gas cylinder valve/gas equipment department. The mainly products are including high and middle pressure oxygen/acetylene/CO2/H2/N2/Ar/Cl/Freon cylinder valve, CGA cylinder valve, CNG/LNG cylinder valve, cryogenic valvepipe shutoff valve and pressure reducer used for all kindly of industries, SCBA cylinder valve and so on. Those products are well-known in domestic market and exported in many countries.

We will 'Survival by Quality, Development by Credit' and looking for your inquiry.
