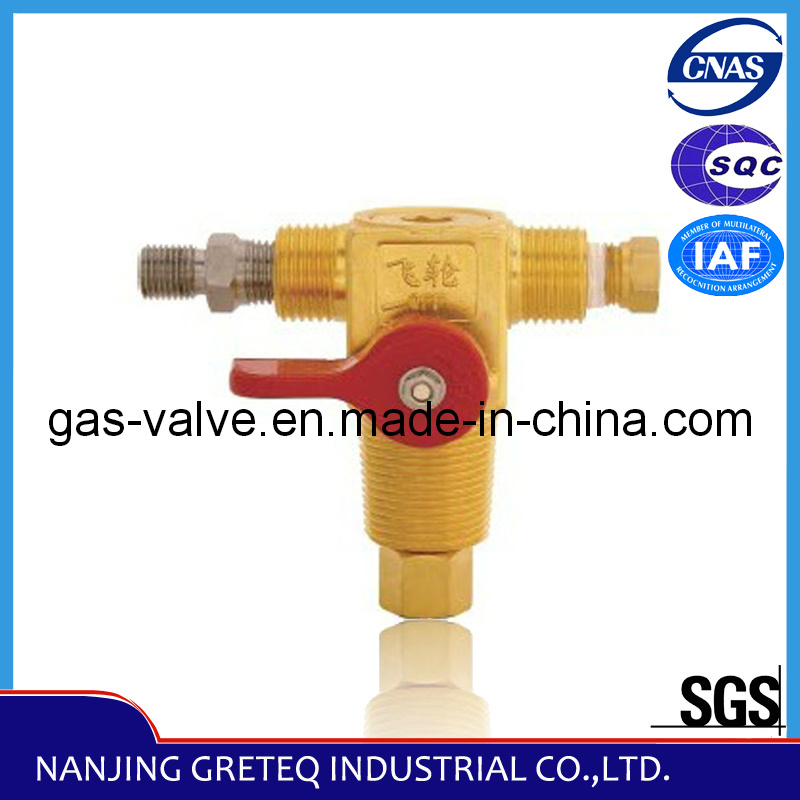

QF-T1Z Best seller Nature Gas Cylinder Valve for Vehicle in China
Specifications
QF-T1Z With gas flow limiting device, the other is the same to QF-T1 type
When the pressure difference reach to 0.65MPa, the gas flow limiting device can limit the flow. When the pressure difference reach to 10MPa, the gas flow should less than 500ml/min.
1)Suitable Medium: CNG
2)Working Pressure: 20Mpa
3)Nominal Diameter: DN5mm
4)Outlet Joint thread: NPT1/4, outside thread G1/2
5)Joint thread to cylinder: GB8335PZ27.8
6)Safety device: 33± 2Mpa, 110° C± 5° C
7)Gas Flow limiting device: 0.65MPa
Packaging & Delivery
Packaging Details: 0.7KG/set, 25sets/carton, 16kg/carton, 35*42*15cm
Delivery Detail: 15 days
Quality certificates
1)SQC certificate for quality management system, has complied with the requirements of GB/T 19001-2000 idt ISO 9001: 2000
2)Manufacture License of Special equipment in People's Republic of China, The Number is TSF210024-2012
|
NO. |
Type No. |
Produce Name |
suitable
Medium |
PN
(Mpa) |
DN(
mm) |
Outlet thread(mm) |
Jiont Thread to cylinder
(mm) |
Temp./Pressure of safety device |
|
1 |
QF-T1Z |
QF-T1Z Brass CNG Car Valve with gas flow limiting device |
CNG |
20 |
4 |
NPT1/4 |
pz27.8 |
33±2Mpa 100deg±5deg |
|
2 |
QF-T1Z2 |
QF-T1Z2 Brass CNG Car Valve with gas flow limiting device |
CNG |
20 |
4 |
Female thread 2-M12x1 |
pz27.8 |
33±2Mpa 100deg±5deg |
|
3 |
QF-T1Z3 |
QF-T1Z3 Brass CNG Car Valve with gas flow limiting device |
CNG |
20 |
4 |
Female thread 2-M12x1 |
3/4-14NGT |
33±2Mpa 100deg±5deg
|
We Nanjing Greteq Industrial Co., Ltd have a long history in China. Now we have two mainly products: Ductile iron pipe/fittings and gas cylinder valve/gas equipment.
In ductile iron pipe/fitting department we use the lost-foam casting process and resin bonded sand process and make production and inspection strict according to ISO2531, BSEN545, BSEN598 and GB/T13295 standard. It annually produces 200000 tons of ductile iron pipe and 15000 tons pipe fitting The diameter are from 80-2600. We have a owned ductile iron pipe factory and several cooperative iron pipe and fitting factory, So we can meet your big quantity order and supply all diameter size ductile ion pipe and fitting to you in short times. Our goods are only for export and had succeeded exported to America, Europe, Africa, Oceania, Southeast Asia and the Middle East.
In gas cylinder valve/gas equipment department. The mainly products are including high and middle pressure oxygen/acetylene/CO2/H2/N2/Ar/Cl/Freon cylinder valve, CGA cylinder valve, CNG/LNG cylinder valve, cryogenic valvepipe shutoff valve and pressure reducer used for all kindly of industries, SCBA cylinder valve and so on. Those products are well-known in domestic market and exported in many countries.
We will 'Survival by Quality, Development by Credit' and looking for your inquiry.
