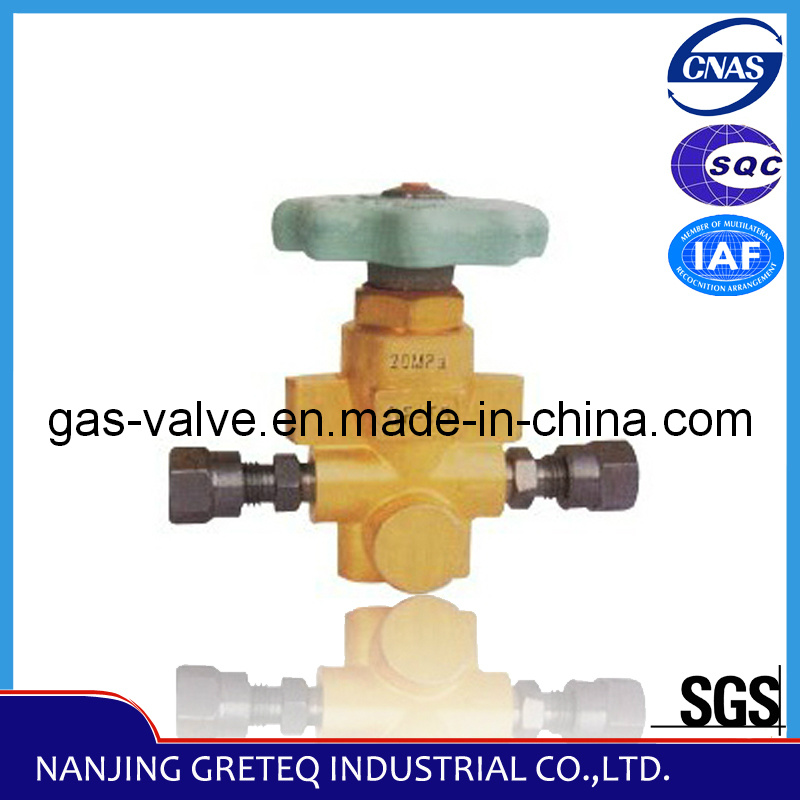

Qf-T3 Natural Gas Cylinder Shutoff Valve (CNG pipeline Valve)

Qf-T3 Natural Gas Cylinder Shutoff Valve (CNG pipeline Valve)
Price: US $ 7-9/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Set
Pay Type: L/C,T/T,D/P
QF-T3 Natural Gas Cylinder Shutoff Valve (CNG pipeline Valve)

Product Details
1)Model name: OF-T3
2)Suitable Medium: CNG
3)Working Pressure: 20Mpa
4)Nominal Diameter: DN5mm
5)Outlet joint thread: Ferrule type hole 6mm

6)Inlet joint thread (thread to cylinder): Ferrule type hole 6mm
7)structure: Shutoff
8)power: Manual
9)pressure: High pressure
10)Material: Brass
11)Media: Gas
12)Temp/Press Of Safety device: None

2: Packaging & Delivery
Packaging Details: 0.6KG/set with package, 25sets/carton, 15KG/carton
Delivery Detail: Within 15days

3: Certificate
SQC certificate for quality management system, has complied with the requirements of GB/T 19001-2000 idt ISO 9001: 2000
Manufacture License of Special equipment in People's Republic of China, The Number is TSF210024-2012
NO. Type  No. Produce Name suitable
Medium
PN
(Mpa)
DN
(mm)
Outlet thread(mm) Jiont Thread to cylinder
 (mm)
Temp./Pressure
 of safety device
1 QF-T3 Natural Gas Shutoff Valve(20MPa 25MPa CNG pipeline Valve) CNG 20 4 Ferrule Type Hole 6 Piston Type Hole 12 /
2 QF-T3A Brass CNG Car 6mm Pipe filling Valve(cng car parts) CNG 20 4 Ferrule Type Hole 6 Piston Type Hole 12 /
3 QF-T3A2 Nature Gas CNG Fill Valve(6mm cng pipe parts ) CNG 20 4 Ferrule Type Hole 6 Piston Type Hole 6 /
4 QF-T3B CNG Car Valve(3-way pipe shutoff valve,20MPa ,25MPa valve) CNG 20 4 Ferrule Type Hole 6 Piston Type Hole 12 /
5 QF-T3C  CNG Charging Valve (CNG car valve) CNG 20 4 Ferrule Type Hole 6 Piston Type Hole 12 /
6 QF-T3C2 Gas Precharge Valve(6mm ,8mm pipe kit) CNG 20 4 Ferrule Type Hole 6 Piston Type Hole 12 /
7 QF-T3C3 Gas Precharge Valve(6mm ,8mm pipe kit) CNG 20 4 NPT1/4 Piston Type Hole 12 /
8 QF-T3C5 Natural Gas Pipeline Valve for CNG car(CNG car parts) CNG 20 4 Ferrule Type Hole 6 Piston Type Hole 6 /


Prod Model: QF-T3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Or Nonstandard: Standard
Structure: Stop
Pressure: High Pressure
Power: Manual
Material: Brass
Temperature Of Media: Normal Temperature
Port Size: Ferrule Type Hole 6mm
Loading Port: Shanghai Port
Delivery Time: Within 10 Days
We Nanjing Greteq Industrial Co., Ltd have a long history in China. Now we have two mainly products: Ductile iron pipe/fittings and gas cylinder valve/gas equipment.

In ductile iron pipe/fitting department we use the lost-foam casting process and resin bonded sand process and make production and inspection strict according to ISO2531, BSEN545, BSEN598 and GB/T13295 standard. It annually produces 200000 tons of ductile iron pipe and 15000 tons pipe fitting The diameter are from 80-2600. We have a owned ductile iron pipe factory and several cooperative iron pipe and fitting factory, So we can meet your big quantity order and supply all diameter size ductile ion pipe and fitting to you in short times. Our goods are only for export and had succeeded exported to America, Europe, Africa, Oceania, Southeast Asia and the Middle East.

In gas cylinder valve/gas equipment department. The mainly products are including high and middle pressure oxygen/acetylene/CO2/H2/N2/Ar/Cl/Freon cylinder valve, CGA cylinder valve, CNG/LNG cylinder valve, cryogenic valvepipe shutoff valve and pressure reducer used for all kindly of industries, SCBA cylinder valve and so on. Those products are well-known in domestic market and exported in many countries.

We will 'Survival by Quality, Development by Credit' and looking for your inquiry.
