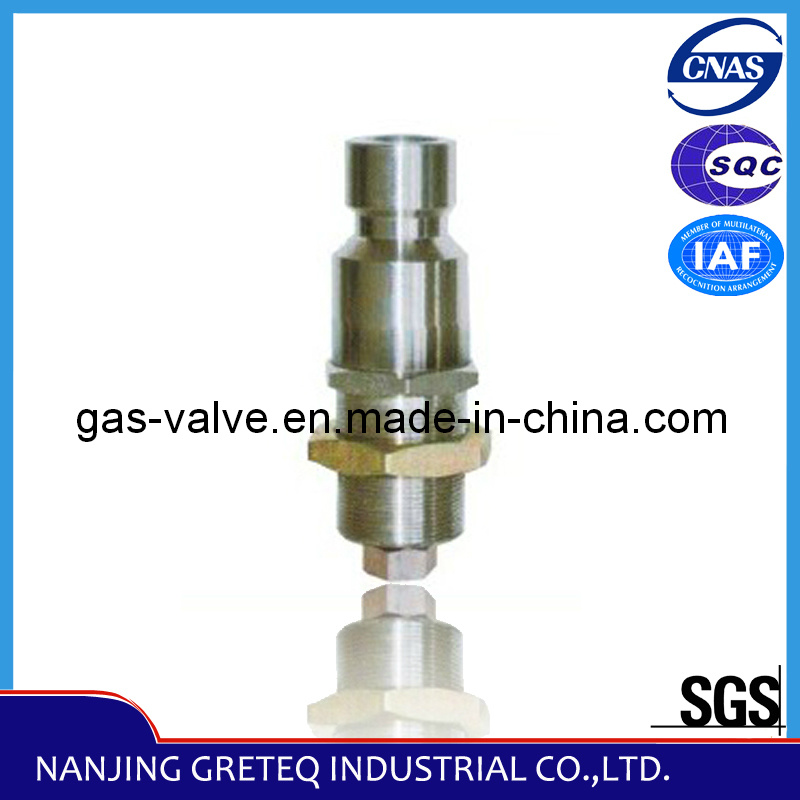

QF-T5 High Quality Stainless CNG Filling Valve in China
Specification:
1. Model Number: QF-T5
2. Power: Pneumatic
3. Structure: Check
4. Material: Stainless Steel
5. Suitable Medium: CNG
6. Working Pressure: 20Mpa 25MPa
7. Outlet: Ferrule type hole6mm
8. Safety device: None
9. Diameter of nozzle: 24mm/P36(3600psi), 25mm/P30(3000psi)
Quality certificates:
1)SQC certificate for quality management system, has complied with the requirements of GB/T 19001-2000 idt ISO 9001: 2000
2)Manufacture License of Special equipment in People's Republic of China, The Number is TSF210024-2012
NO. |
Type No. |
Produce Name |
suitable
Medium |
PN
(Mpa) |
DN
(mm) |
Outlet thread(mm) |
Jiont Thread to cylinder
(mm) |
Temp. /Pressure
of safety device |
1 |
QF-T3E |
CNG Stop Valve (CNG car valve, cng pipe valve) |
CNG |
20 |
4 |
Ferrule Type Hole 6 |
Ferrule Type Hole 6 |
/ |
2 |
QF-T3G |
CNG Refueling Valve for Car(Pipeline valve) |
CNG |
20 |
4 |
Ferrule Type Hole 6 |
Piston Type Hole 12 |
/ |
3 |
QF-T3H |
Brass CNG Charging Valve(cng kits, cng conversion kits) |
CNG |
20 |
4 |
Ferrule Type Hole 6 |
Piston Type Hole 12 |
/ |
4 |
QF-T3H1 |
Natural Gas Fast Filling Valve for CNG Car |
CNG |
20 |
4 |
Ferrule Type Hole 6 |
|
/ |
5 |
QF-T3H2 |
Brass Natural Gas Valve for CNG Auto pipeline(CNG Auto parts, CNG vehicle parts) |
CNG |
20 |
4 |
Ferrule Type Hole 6 |
Ferrule Type Hole 6 |
/ |
6 |
QF-T3H3 |
CNG Gas Valve for CNG fuel systems(18mm Filll hole valve) |
CNG |
20 |
4 |
Ferrule Type Hole 6 |
Ferrule Type Hole 6 |
/ |
7 |
QF-T4 |
Brass CNG Inflation Valve(20MPa cng car parts) |
CNG |
20 |
4 |
2-Rc1/4 |
Piston Type Hole 12 |
/ |
8 |
QF-T4A |
Brass CNG Inflation Valve(21MPa cng car parts) |
CNG |
20 |
4 |
NPT1/4 M14x1.5 |
Piston Type Hole 12 |
/ |
9 |
QF-T4B |
Brass CNG Inflation Valve(22MPa cng car parts) |
CNG |
20 |
4 |
2-npt 1/4 |
Piston Type Hole 12 |
/ |
10 |
QF-T5 |
Stainless Steel CNG filling Adaptor Valve (6mm pipe fittings ) |
CNG |
20 |
4 |
Ferrule Type Hole 6 |
|
33± 2Mpa 100deg± 5deg |
11 |
QF-5T |
Brass CNG Tank Valve (cylinder kits) |
CNG |
20 |
4 |
DIN 477 W21.8x1/14-LH |
PZ27.8 |
33± 2Mpa 100deg± 5deg |
12 |
QF-5T1 |
Brass CNG valve for Gas Cylinder with safty device |
CNG |
20 |
4 |
DIN 477 W21.8x1/14-LH |
DIN 477 W21.8x1/14-LH |
|
We Nanjing Greteq Industrial Co., Ltd have a long history in China. Now we have two mainly products: Ductile iron pipe/fittings and gas cylinder valve/gas equipment.
In ductile iron pipe/fitting department we use the lost-foam casting process and resin bonded sand process and make production and inspection strict according to ISO2531, BSEN545, BSEN598 and GB/T13295 standard. It annually produces 200000 tons of ductile iron pipe and 15000 tons pipe fitting The diameter are from 80-2600. We have a owned ductile iron pipe factory and several cooperative iron pipe and fitting factory, So we can meet your big quantity order and supply all diameter size ductile ion pipe and fitting to you in short times. Our goods are only for export and had succeeded exported to America, Europe, Africa, Oceania, Southeast Asia and the Middle East.
In gas cylinder valve/gas equipment department. The mainly products are including high and middle pressure oxygen/acetylene/CO2/H2/N2/Ar/Cl/Freon cylinder valve, CGA cylinder valve, CNG/LNG cylinder valve, cryogenic valvepipe shutoff valve and pressure reducer used for all kindly of industries, SCBA cylinder valve and so on. Those products are well-known in domestic market and exported in many countries.
We will 'Survival by Quality, Development by Credit' and looking for your inquiry.
