| Price: | US $ 2-14/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 300/Set |
| Pay Type: | L/C,T/T |
| NO. | Type No. | Produce Name |
suitable Medium |
PN (Mpa) |
DN (mm) |
Outlet thread(mm) |
Jiont Thread to cylinder (mm) |
Temp. /Pressure of safety device |
| 1 | QF-T5 | Stainless Steel CNG filling Adaptor Valve (6mm pipe fittings ) | CNG | 20 | 4 | Ferrule Type Hole 6 | 33± 2Mpa 100deg± 5deg | |
| 2 | QF-5T | Brass CNG Tank Valve (cylinder kits) | CNG | 20 | 5 | DIN 477 W21.8x1/14-LH | PZ27.8 | 33± 2Mpa 100deg± 5deg |
| 3 | QF-5T1 | Brass CNG valve for Gas Cylinder with safty device | CNG | 20 | 5 | DIN 477 W21.8x1/14-LH | DIN 477 W21.8x1/14-LH | / |
| 4 | QJG-5E | CNG Brass Stop Valve(cng cylinder valve) | CNG | 20 | 5 | M22x1.5-LH M14x1.5 | M22x1.5 | / |
| 5 | QJG-5E3 | CNG Brass Tank Valve with handwheel | CNG | 20 | 5 | M22x1.5 | M22x1.25 | / |
| 6 | QJG-5F | CNG Gas Shutoff Valves (CNG Parts) | CNG | 20 | 5 | M22x1.5 | Piston Type Hole 12 | / |
| 7 | QF-6T | High Pressure CNG Tank Valve(cng cylinder parts) | CNG | 20 | 6 | DIN 477 W21.8x1/14-LH | PZ27.8 | 33± 2Mpa 100deg± 5deg |
| 8 | QF-6T2 | High Pressure CNG Tank Valve(cng cylinder parts) | CNG | 20 | 6 | DIN 477 W21.8x1/14-LH | M25x2 | 33± 2Mpa 100deg± 5deg |
| 9 | QF-7T | CNG Filling Cylinder Valve with internal thread | CNG | 20 | 6 | G5/8-LH | BS3411-1/14 | 33± 2Mpa 100deg± 5deg |
| 10 | QF-7TZ | CNG Charging Cylinder Valve | CNG | 20 | 4 | G5/8-LH | PZ27.8 | 33± 2Mpa 100deg± 5deg |
| 11 | QF-8T | CNG Angle Cylinder Ball Valve for cng car | CNG | 20 | 5 | BS3411-1/14 | 33± 2Mpa 100deg± 5deg | |
| 12 | QF-9T | CNG Angle Valve for cng cylinder(cng car parts) | CNG | 20 | 7 | 11/8-12 UNF | 33± 2Mpa 100deg± 5deg |

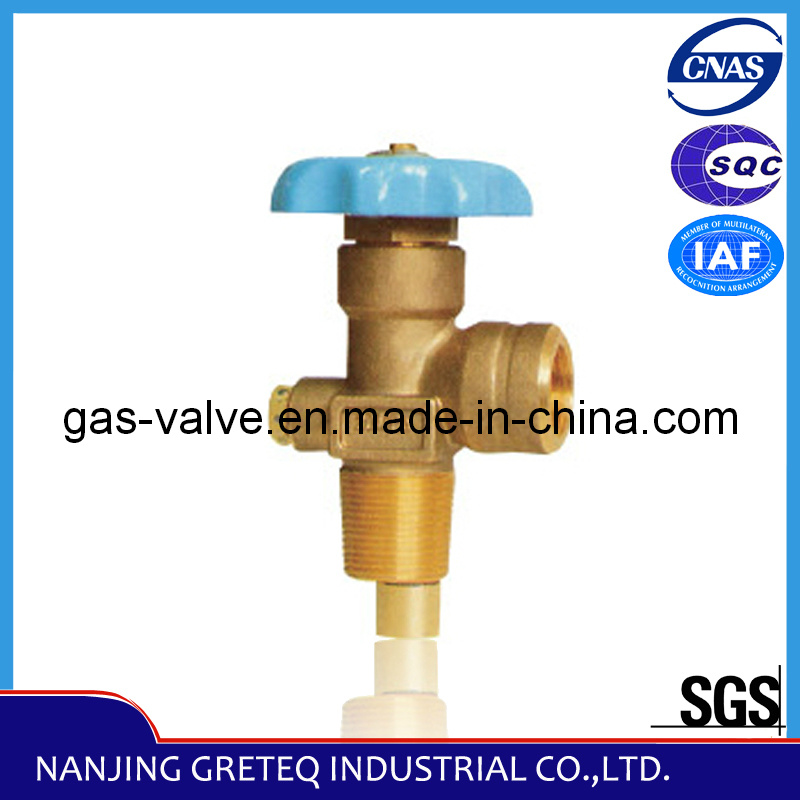

| Prod Model: | QF-T7Z |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Or Nonstandard: | Standard |
| Power: | Manual |
| Structure: | Shutoff |
| Pressure: | High Pressure |
| Port Size: | Pz27.8, Feamle Thread G5/8-Lh |
| Loading Port: | Shanghai Port |
| Material: | Brass, Brass Hpb59-1 |
| Delivery Time: | Within 10 Days |
