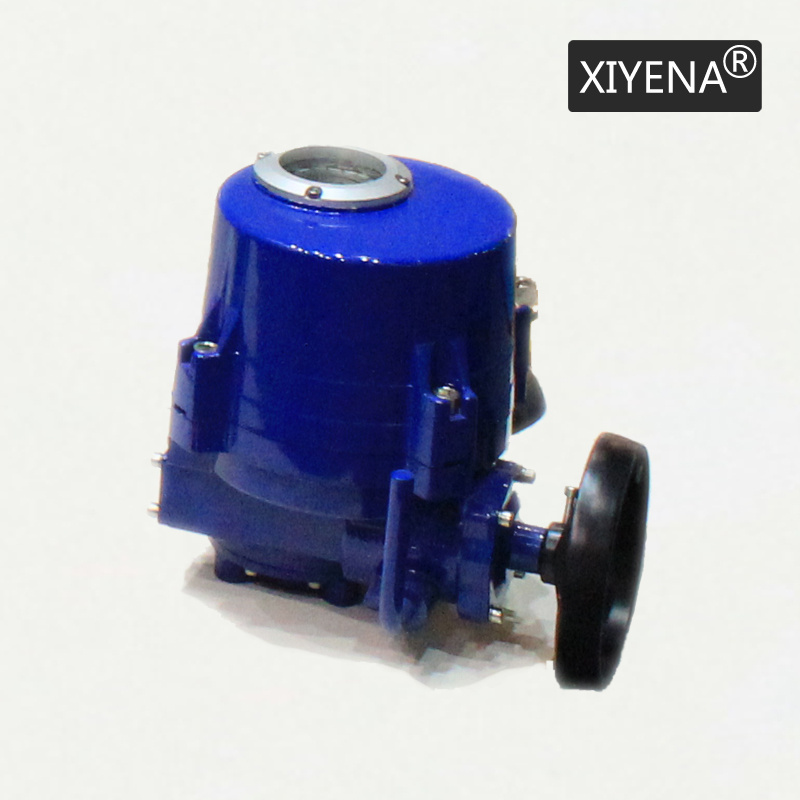

Quarter Turn Electric Actuator

Quarter Turn Electric Actuator
Price: US $ 200/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
1.  Xiyena products and services are helping companies in the oil & gas, water and waste water, power, marine, mining, food, pharmaceutical and chemical industries around the world to improve efficiency, assure safety and protect the environment.   2.  actuators are operating reliably and safely in the most hazardous and hostile environments. XIYENA intelligent ELECTRIC ACTUATOR is the home of the flagship XSL intelligent electric actuator range. The XSL range features legendary innovations including XIYENA's unique double-sealed enclosure, 'non-intrusive' infra-red commissioning, data-logging and predictive maintenance capabilities. More recent innovations include the advanced display, Bluetooth,Torque-pretect, communications interface and absolute encoder. The XSL functionality and reliability is available for valves of virtually every size and description, including quarter-turn, isolating and modulating, with watertight and hazardous area approvals to all internationally recognised standards.      XIYENA actuators are compatible with a wide range of communication and process control systems. XIYENA's own system offers advanced actuator network control similar to network control from Profibus, Foundation Fieldbus, Modbus, DeviceNet and Hart. 3  Powerful Features: Three-phase, direct current and single-phase variants Advanced, multilingual display for status and setup Detailed data logging Setting and data capture via Bluetooth? handheld tool InSight2 PC software for valve performance analysis Highly intuitive user interface Comprehensive control and flexibility 4. Main technical parameters:    Actuator shall operate normally under the following conditions: a)Temperature:-25 ~75 ; b)Relative humidity:≤95%; c)Air pressure:86KPa~106Kpa; d) There should be no corrosive media in the ambient environment. Power voltage: AC 220V/50Hz. Basic tolerance: ±0.5%; ±1.0%; ±1.5%; ±2.5%. (Expressed as the percentage of rated stroke). Backlash: ≤0.5%; ≤1.0%; ≤1.5%. (Expressed as the percentage of rated stroke). Dead zone: ≤0.5%; ≤1.5%; ≤3.0%.(Expressed as the percentage of input signal). Input signal: 4-20mA; 4-12; 12-20mA; 0-5; 1-5V. Input impedance: 250Ω/500KΩ.    Isolation resistance: a)Between input terminal and housing: ≥20MΩ. b)Between input terminal and terminal of power supply: ≥50MΩ c)Between power supply terminal and housing: ≥50MΩ. Table 1. The external dimensions of actuator.    Isolation strength:              a)The testing voltage and frequency between input terminal and housing and between input terminal and power supply terminal are 500V and 50Hz.              b)The testing voltage and frequency between power supply terminal and housing are 1500V and 50Hz. Size: The size of actuator is as shown on fig.4 and table1.
XHQ  QUATER TURN (N.m) STROCK
XHQ100 100 90°
XHQ150 150 90°
XHQ200 200 90°
XHQ300 300 90°
XHQ500 500 90°
XHQ600 600 90°
XHQ800 800 90°
XHQ1100 1100 90°
Prod Model: XHQ200
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item No: Xhq200
Task: Adjust
Mathematical Model: Quarter Turn Strock
Place Of Origin: China
Brand Name: Xiyena
Standard Packing: Nuetral Export Packing or Customer Designed
Work Pressure: Mid-Pressure (',2.5mpa< Pn <6.4mpa)
Material Of Seal Surface: Soft Sealed
Connection Form: Welding
Structure: Centre Sealing
Seal Form: Supercharging Pressured Sealed
Working Temperature: Medium Temperature (',120??C
Application: Household Usage
Hangzhou Xiyuena Automatic Controlled Equipment Co., Ltd. is a High-Tech Enterprise Which Is Specialized in Research, Development, Production of Intelligent Electrically-Operated Actuator and Electrically-Operated Regulating Valve. with Great Technical Support of Scientific Research Organizations of Higher Education Institutes, and Absorption of German Technologies, It Has Produced First Class Electrically-Operated Valve Actuator.

This Product Adopts Intelligent Control Circuit, and Is Able to Realize Self Diagnosis and Adjustment. The Working Status Is Shown in The LCD Display. Meanwhile, It Has Advantages Such as Strong Applicability, Full Function, Extremely Accurate Control, Easy Operation, Friendly Man-Machine Interface etc. It Can Be Widely Used as Valves in Fields Such as Chemical Industry, Power, Pharmacy, Metallurgy, Petroleum, and Switch Control and Regulation Control of Pipes. Besides, It Has Solved Shortcomings of Similar Domestic Products, Such as Slow Response, Complicated Structure, Large Volume and Easy to Fail.

The Company Will Take Technology Innovation and Management Innovation as Two Wings for Its Development. What's More, It Will, Through Strategic Cooperation with Domestic and Foreign Suppliers as Well as Social Technology Development, Consultation Institutions and Relevant Industrial Partners, to Realize The Goal of "Win-Win".

Company Concept: Insist on Serving The Customers and Creating Value for Them. Upholding The Modern Enterprise Spirits of "Work out Quality Products with Good Management, to Win Customers with Outstanding Service", It Constantly Reinforces Its Internal Regulation and Management. Besides, It Applies Modern Flow Reconstruction Mode, Establishes Effective System, and Consolidates Quality Tracking to Produce Quality and Advanced Products.

Company Service: to Establish Modern Market Operation Mode and Service Customers with High Quality Is Our Starting Point. to Effectively Gain Benefits for The Partners and to Make Maximum Use of Their Resources, The Company Will Think in The Shoes of The Customers, Proactively Utilize The Human Resources, Technologies and Equipment of The Company, to Provide Full-Round Service and Best Solution for The Customers on The Basis of Co-Development and Win-Win Strategy. as for Customer Needs, The Company Always Provide Full-Process Tracking From Order Placing, Production to Distribution, Thus to Ensure Satisfaction of Customer Needs to The Utmost.

Company Products: Have Passed Testing of The Automation Instrument Product Quality Supervision and Testing Center Under The Ministry of Machinery and Industry. All The Technical Performances Comply with National Standards. All The Products Are Produced According to Requirements of GB/T4213-1992. Meanwhile, We Also Produce Various Non-Standard Industrial Automation Flow Control Valve for Broad Customer.
