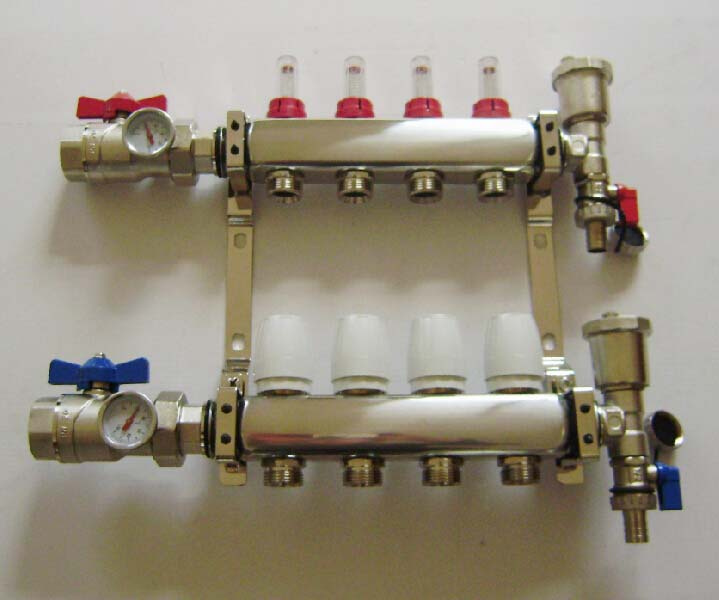

Radiant Heating Manifold
| Price: |
US $ 120/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Description of radiant heating manifold:
The distribution manifolds are designed for low-temperature hot water radiant panel heating systems.
The supply distribution manifold equipped with built-in balancing valves, and the return distribution manifold equipped with built-in shut-off valves suitable for electro-thermal actuator which is controlled by room thermostat to meet your individual requirement for comfortable room temperature |
The heating circuit manifold includes:
- Manifold supply and return bars
- Brackets with sound absorption lining for wall mounting of manifold, 2 pcs. per manifold
- Flow meter installed in the supply bar, to determine and display the flow rate of heating circuits manifolds, 1 piece for each outlet
- Control valve installed in the return bar, for exact adjustment of water quantities, 1 piece for each outlet
- Ball valves, 2 pcs. per manifold
- Automatically vent valve, 2 piece,
- Tee connector, 2 pcs. per manifold
- Drain valve 2 pcs per manifold |
| Specification: |
| Material: Brass Hpb59-1 | | Pip-connector size fork outlet:20mm*2,16mm*2 multilayer or pex pipe | | pip-connector distance:45mm,50mm,60mm,70mm(Optional) | | Wall thickness:3.5mm | | Loop:2 loops to12 loops (Optional) | | Applied Medium: Water | | Max Pressure: 10 bar | | Max Temperature: 110°C | | Certificate: ISO9001,CE,ROHS | | Surface: Polished and chrome plated | | Seal compose material: EPDM or NBR | | Packing: bubble bag/inner box/outer box/pallet |
|
| Features: |
1. Hot-stamped brass body
2.Nature color, surface anticorrosion processing
3.Outlets in composite with the main body to exterminate the leakage possibility of manifolds
4.Axial static seal technology
5.No O-ring for pipe fittings
6.Freestyle combination for multi-loops |
Optional accessory
| 1. | ball valve with temperature meter | | 2 | viewable flowmeter | | 3 | adapter | | 4 | actuator | | 5 | room temperature controller | | 6 | bracket | | 7 |
|
|
| Prod Model: |
F004 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Work Environment: |
Low-temperature Heat Pump |
| Heat Source: |
Water-source |
| Application: |
Hotels |
| Certification: |
CCC |
| Heat Temperature: |
Max 100 Centi-Degree |
