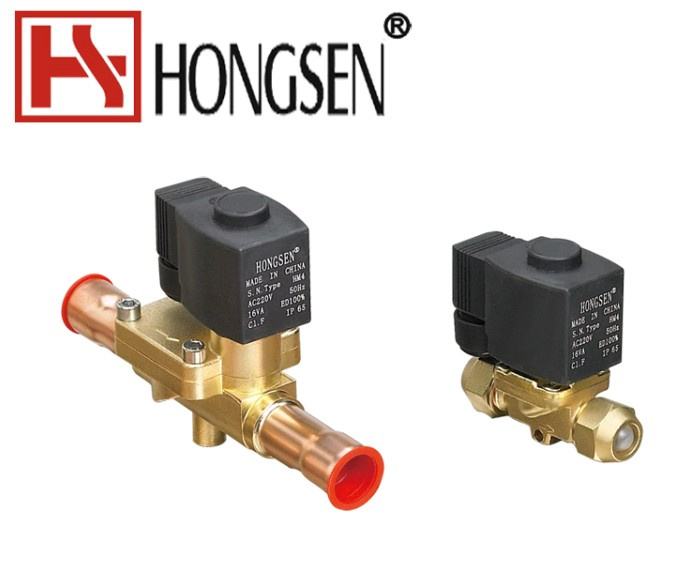

HV Refrigeration Solenoid Valve
@ Model HV solenoid valve is a one-step on/off or two-step on/off solenoid valve, which is applicable to one-way flow.
@ Model HV solenoid valve is used on the piping of liquid, suction gas or hot air on the freezing, cold storage and air conditioner units.
@ For Model CV one-way valve, both threaded and welded connections are available.
@ Model HV solenoid valve could be supplied with coils of varied voltage and the valve body is universal.
@ Model HV solenoid valve could be supplied in assembly or in separate components, that is, the valve body and the coil could be supplied separately.
Features:
@ Only NC valve is available.
@ Flare connection is up to 3/4 in.
@ Coils of various power supply are available for choice.
@ Welded connection is up to 1-5/8 in.
@ For 9W solenoid, MOPD is up to 3.0 MPa.
@ For clamping type solenoid valve, it is simple and just need one screwdriver in installation.
@ It is suitable to various application in freezing, cold storage and air conditioner units.
@ The sealed coil has a long service life and could be used in adverse circumstances.
Technical Paramengers:
Applicable Refrigerant HCFC, HFC and related medium viscosity ≤ 2° E lubricant oil
Applicable Medium Temperature -25° C~+110° C
Coil Applicable Ambient Temperature -25° C~+65° C
Coil Standard Voltage AC380V, 220V, 110V, 24V/50, 60Hz, DC24V
Coil Allowable Voltage Fluctuation +10%~-10%
Coil Connection Class IP 65, DIN 43650 standard teminal box
Specification:
Structure Model Connection Opening P (bar) PB(bar)
Maximum Working
Pressure Kv Value(m3/h)
Spec Type Minimum MOPD
LiquidMOP
Direct-Operated HV3-2 1/4 SAE 0.0 30 40 0.27
HV3-2T ODF
HV3-3 3/8 SAE
HV3-3T ODF
Servo-
Operate HV8M3 SAE 0.05 0.8
HV8M3T ODF
HV8M4 1/2 SAE
HV8M4T ODF
HV10M4 SAE 1.9
HV10M4T ODF
HV10M5 5/8 SAE
HV10M5T ODF
HV15M5 SAE 2.6
HV15M5T ODF
HV15M6 3/4 SAE 3
HV15M6T ODF
HV16M6T 4
HV19M7T 7/8 4.5
HV20M7T 5.0
HV20M9T 1-1/8 6.5
HV25M9T 0.2 10.5
HV25M11T 1-3/8
HV32M11T 16.0
HV32M13T 1-5/8
HV40M13T 21.0
Kv value: When the pressure differential is 100 KPa, the flowrate at m3/h of water in density 1t/m3 flows through the solenoid valve
Overall Dimension:
Model Overall Dimension Weight(g)
H1 H2 W L L1 L2 ø D Thewad M ---
HV3-2 14 66 30 60 14 -- -- 7/16-20UNF ---
HV3-2T 106 7 25 6.5 --- ---
HV3-3 68 16 -- -- 5/8-18UNF ---
HV3-3T 120 8 32 10.1 --- ---
HV8M3 14 67 36 70 16 -- -- 5/8-18UNF ---
HV8M3T 124 8 33 10.1 --- ---
HV8M4 76 18 -- -- 3/4-16UNF ---
HV8M4T 130 10 36 12.9 --- ---
HV10M4 15 70 45 86 18 -- -- 3/4-16UNF ---
HV10M4T 138 10 36 12.9 --- ---
HV10M5 92 21 -- -- 7/8-14UNF ---
HV10M5T 156 14 42 16.1 --- ---
HV15M5 20 75 55 106 21 -- -- 7/8-14UNF ---
HV15M5T 166 14 45 16.1 --- ---
HV15M6 110 22 -- -- 1-1/16-14UNS ---
HV15M6T 172 16 48 19.2 --- ---
HV16M6T 27 88 57 175 16 45 19.2 --- ---
HV19M7T 180 17 48 22.3 --- ---
HV20M7T 24 92 66 191 57 --- ---
HV20M9T 230 22 68 28.7 --- ---
HV25M9T 27 96 73 246 73 --- ---
HV25M11T 281 25 85 35.2 --- ---
HV32M11T 28 100 86 --- ---
HV32M13T 29 85 41.5 --- ---
HV40M13T 32 120 100 314 29 90 41.5 --- ---
Note: (1)Coil alone weight 220g
(2)Nut is excluded from above mentioned weight.
(3)Nut weight 1/4-18g, 3/8-30g, 1/2-33G, 5/8-50g and 3/4-93G.
