Product description
Name | Working pressure | Connector | Size | Material | Media |
safety relief valve | 30-230psi/3-16Bar | Thread NPT/BSP | 3/8 DN10 | brass | air |
safety relief valve | 30-230psi/3-16Bar | Thread NPT/BSP | 1/2 DN15 | brass | air |
safety relief valve | 30-230psi/3-16Bar | Thread NPT/BSP | 3/4 DN20 | brass | air |
safety relief valve | 30-230psi/3-16Bar | Thread NPT/BSP | 1 DN25 | brass | air |
safety relief valve | 30-230psi/3-16Bar | Thread NPT/BSP | 1-1/4 DN32 | brass | air |
safety relief valve | 30-230psi/3-16Bar | Thread NPT/BSP | 1/1-2 DN40 | brass | air |
safety relief valve | 30-230psi/3-16Bar | Thread NPT/BSP | 2 DN50 | brass | air |

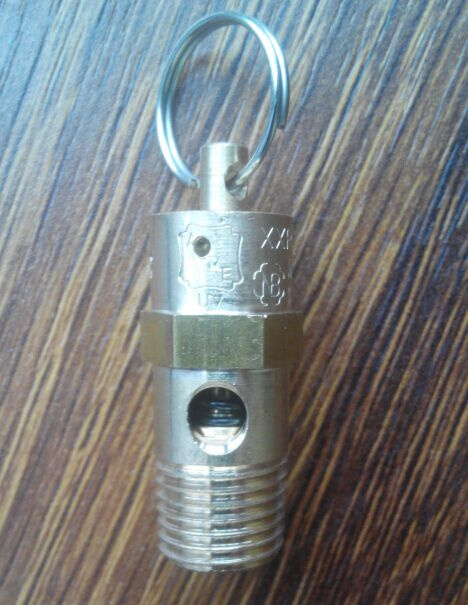

screw compressor air relief valve,
brass materail,for screw air compressor,
less than 200 degree, size from 3/8 to 2
Safety valve
The best extra-pressure protection device takes care of press equipments, container and on-line pipe. when mediums pressure rises over the allowed pressure , safety valve will automaticaly open and fully discharge to protectthe equipment from pressure going on rising and will automatically close when the pressure lowers to the setting pressure .
The valve bonnet of sealed safety valve prevents dustand foreign matters from invading. meanwhile protect toxic combustible media from overflowing . the valve bonnet of open safety valve can favor the spring seat in lowering temperature inside of . it is mainly used for the pipeline and container with steam medium . the safety valve with a radiator is suitable for the medium with a temperature over 350 °c.
The safety valve with lever , it makes use of open manually when the media pressure over 75% of setting pressure .
Full lift safety valve opening heiht is more than one fourth times of the flow diameter . it has an advantage of discharging greatly . low lift safety valve valve opening height is between one twentith to one fortiegh times of the flow diameter.
Our services
Pre-sale Service
A.Sample can be offered with sample charge and courier fee by buyer's side.
B.We have full stock,and can deliver within short time.Many styles for your choices.
C.OEM and ODM order are accepted, Any kind of logo printing or design are available.
D.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
E.All of our product are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
F.We have rich experience of designing, manufacturing and selling lingerie, we cherish every order from our honor.
After-sale service
A.We are very glad that customer give us some suggestions for price and products.
B.If any question,please contact with us freely by E-mail or Telephone.
Boss was set up in 2009 in Wuxi, it takes 1 hour from Shanghai Railway station to our factory.
Business scope: Vavle and pump develope, manufacture, sell and service.
Looking for abroad companies agent biz
Advantage:
1, CNC machines 20 sets
2, production lines: 4
3, CE, asme products
4, follow Germany and Italy technology
5, 3 stores and 2 factoreis
Company Policy: Honest, Service, Quality
Welcome to your visit warmly.
