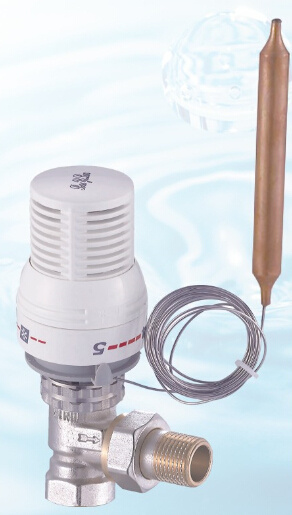

Long range controller inspection
Long range controller doesn't need exterior power while automatically sensing to adjust and maintain the temperature, normally used for underfloor heating systems.It is easy to fix and dismantle.
1.Long rang controller is used screw to joint on the control valve body,by adjust the controller to set the temperature range.This can keep the temperature to a certain point,in case to set at a wrong point,keeping flow rate to steady range.
2.Temperature setting
For example.you can use it to control the return water of the floor heating system,temperature of the hot water tank and so on to reach your designed temperature.Two temperature range can be chooses:From room 6-28degree;for underfloor heating system:30-70degree.
Temperature range is following.
For room:
Room temperature ºC: 6 12 16 20 24 28
Scale range: * 1 2 3 4 5
For underfloor heating system:
Room temperature ºC: 30 38 46 54 62 70
Scale range: * 1 2 3 4 5
3.Main specification
Max pressure:1.0Mpa
Max differential pressure:0.1Mpa
Size:1/2''3/4''1''
Connection size:M30*1.5
Tube length:2m
Control range:6-28degree,30-70degree
Working medium:Water
Max pressure:10bar
Stroke:3mm
4.Installation note
A. When fixing the controller to the valve body,use proper tools to screw it tight,do not use strong strength in case of broking the nut.
B.The controller should be fixed with manifold and keep them ventilating,avoid strong lights or near the hot stuffer.And not to be barred.
C.Use soft clearance liquid to clean its surface,do not use alcohol or bleach liquid or any other organic solvents.
