Performance
Suitable temperature: ≤120ºC
Nominal pressure: ≤1.6MPa

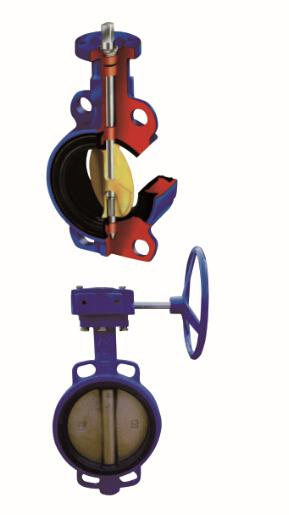

Structure: Center line with pin, center line without pin
Application: Food, medicine, chemical, petroleum, electric power, textile, paper and other industries
Usage: Used in water supply and drainage system, it is mainly to regulate and stop medium flow.
General features
Small operation torque, easy to operate, save labour.
Innovative and reasonable design, unique structure, light weight and rapid opening and closing function.
Sealing elements can be replaced. It can achieve bidirectional sealing effect and no medium leakage.
Installed in any position. Easy to maintain.
The features of sealing materials are aging resistance, corrosion resistance, long service life,etc.
Part name | Materials |
| Body | Gray cast iron, nodular graphite steel |
| Wedge | Gray cast iron, nodular graphite steel, Cast steel, stainless steel and special materials |
| Seal ring | all kinds of rubber, PTFE |
| Stem | stainless steel |
| Packing | O-rings,flexible graphite |
Main technical parameters
| DN(mm) | 50-2000 |
| PN(MPa) | 0.6 | 1 | 1.6 |
| Test pressure | Strength test | 0.9 | 1.5 | 2.4 |
| Sealing test | 0.66 | 1.1 | 1.76 |
| Air seal test | 0.6 | 0.6 | 0.6 |
| Applicable medium | Air, water, sewage, steam, gas, oil and so on |
| Driving mode | Manual, gear, pneumatic, electric |
| Optional seal materials and applicable temp |
| Description | Neoprene | Chemigum | EBR | PTFE | Silicone rubber | Fluorous rubber |
| Code name | X or J | XA or JA | XB or JB | XC, JC or F | XD or JD | XE or JE |
| Max. temp | 82ºC | 93ºC | 150ºC | 232ºC | 250ºC | 204ºC |
| Min. temp | -40ºC | -40ºC | -40ºC | -268ºC | -70ºC | -23ºC |
| Working temp | ≤65ºC | ≤80ºC | ≤120ºC | ≤200ºC | ≤200ºC | ≤180ºC |
