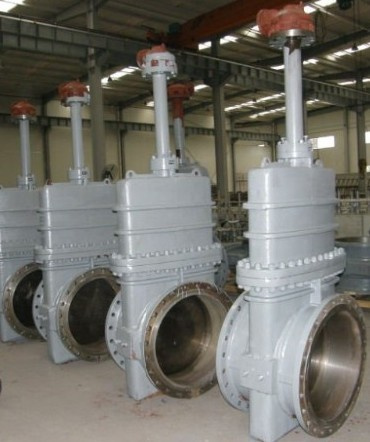

A gate valve, also known as a sluice valve, is a valve that opens by lifting a round or rectangular gate/wedge out of the path of the fluid. The distinct feature of a gate valve is the sealing surfaces between the gate and seats are planar. The gate faces can form a wedge shape or they can be parallel. Typical gate valves should never be used for regulating flow, unless they are specifically designed for that purpose. On opening the gate valve, the flow path is enlarged in a highly nonlinear manner with respect to percent of opening. This means that flow rate does not change evenly with stem travel. Also, a partially open gate disk tends to vibrate from the fluid flow. Most of the flow change occurs near shutoff with a relatively high fluid velocity causing disk and seat wear and eventual leakage if used to regulate flow. Typical gate valves are designed to be fully opened or closed. When fully open, the typical gate valve has no obstruction in the flow path, resulting in very low friction loss.
|
Serial no. |
part |
material |
|
1 |
Body |
Grey cast iron, ductile cast iron, cast steel |
|
2 |
Disc |
Ductile cast iron packed with rubber or EDPM outside |
|
3 |
Bolt |
Carbonized treatment |
|
4 |
Gasket |
Buna-N rubber or EPDM |
|
5 |
Cover |
Grey cast iron, ductile cast iron, cast steel |
|
6 |
Stem |
Stainless steel |
|
7 |
O-ring |
Buna-N rubber |
|
8 |
Thrust bearing |
Gun metals |
|
9 |
Bolt |
Carbon steel or alloy |
|
10 |
Gland |
ductile cast iron, cast steel |
|
11 |
Dust proof gasket |
Buna-N rubber |
|
12 |
Hand wheel |
Ductile iron |
