Specifications
1. Material is high quality forged brass
2. Used in refrigeration system and air condition
3.Threaded and solder connector

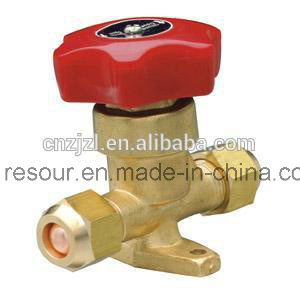

RESOUR Refrigeration Hand Valve, Stop Valve, Shut off Valve
Application:
It is a manually-operated shutoff valve, which is applicable to one direction flow, and particularly applicable to be used on the liquid, air suction or hot vapor piping of the bus air conditioning unit.
Technical Parameter:
1. Applicable refrigerant: HCFC and HFC
2. Applicable medium tempreature:-25°c~100°c
3. Max operating pressure: 2.5MPa
4. Scope of operating pressure:-0.1MPA~2.1MPa
5. Air-tight test pressure: 3.0MPa
6. with standard test pressure: 4.5MPa
| RS-H-1 | Dg4 Hand valve | screw 1/4" | ¢6 |
|
| RS-H-2 | Dg8 Hand valve | screw 3/8" | ¢10 |
|
| RS-H-3 | Dg10 Hand valve | screw 1/2" | ¢12 |
|
| RS-H-4 | Dg13 Hand valve | screw 5/8" | ¢16 |
|
| RS-H-5 | Dg16 Hand valve | screw 3/4" | ¢19 |
|
|
|
|
|
|
|
| RS-H-6 | Dg4 Hand valve | welded 1/4" | ¢6 |
|
| RS-H-7 | Dg8 Hand valve | welded 3/8" | ¢10 |
|
| RS-H-8 | Dg10 Hand valve | welded 1/2" | ¢12 |
|
| RS-H-9 | Dg13 Hand valve | welded 5/8" | ¢16 |
|
| RS-H-10 | Dg16 Hand valve | welded 3/4" | ¢19 |
|
| RS-H-11 | Dg19 Hand valve | welded 7/8" | ¢22 |
|
|
please contact us for more details and models.special types can be customized.
