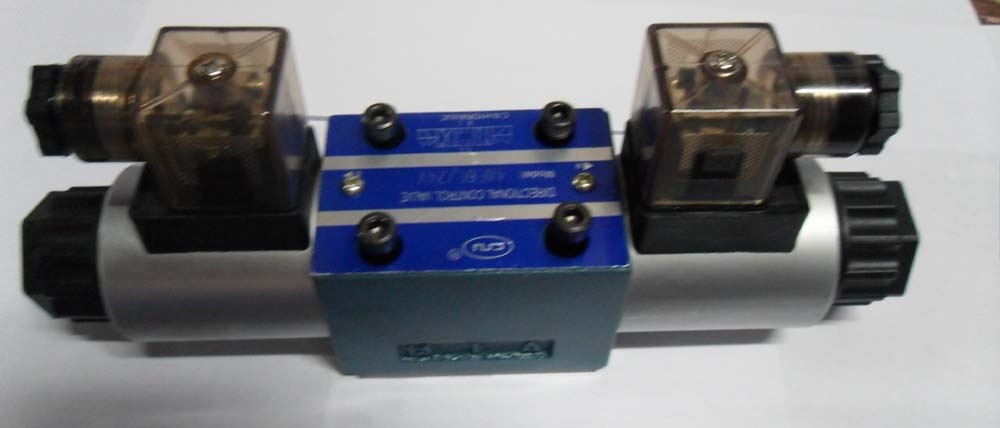

DSG solenoid valve, hydraulic control valve
Electro-hydraulic directional control valve, electromagnetic valveassemble with the high absorbing power wet-type soleniods
Electro-hydraulic directional control valve, electromagnetic valve
These series of valves assemble with the high absorbing power wet-type soleniods, 5 cavities valve structure and rational flow path design. This series of valves has the characters of high pressure, high flow rate and low pressure drop. By the using of wet-type solenoid, the valves has long product life. Low noise and no oil leakage.
Features
1. High pressure, high flow rate.
This series of valves has greatly enhanced the pressure and flow rate compare with our conventional products.
Max. Operating pressure has enhanced by 10%(31.5--35 mpa)
Max. Tank line back pressure Mpa has enhanced by 30% (16-21 Mpa)
Max. Flow rate has enhaced by 60% (63--100L/min)
2. Low pressure drop
This fitting can decrease the power consumption efficiently. The pressure drop decrease by 10% compare with the former design.
3. High reliability
This series valves has good performance even under contaminative condition by the use of high absorbing power solenoids and a strong spring returned force.
Specifications
Max. Change over frequency cycles /min: 300
|
Valve type |
Model number |
Max. flow L/min |
Max. operating press. Mpa |
Max. tank line back press. Mpa |
|
Standard |
DSG-01-3C--HP |
100 |
35 |
21 |
|
DSG-01-2D2--HP |
|
DSG-01-2B---HP |
