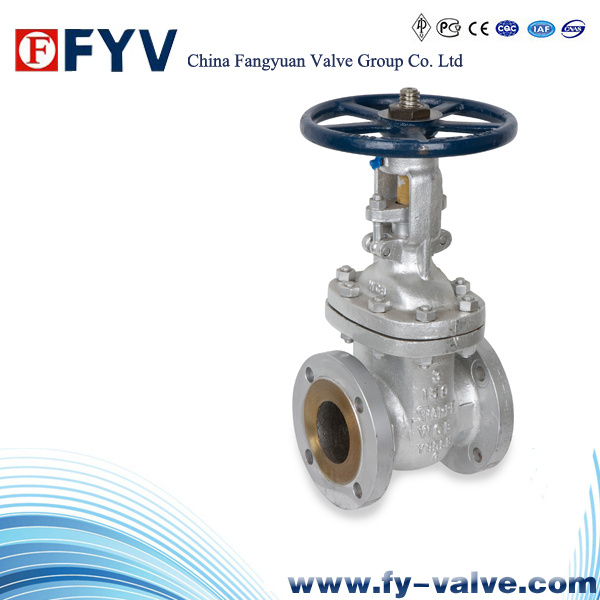

Rising Stem Flanged Cast Steel Gate Valve (Class150LB)
| Price: |
US $ 99-199/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Material TypeSteel
Construction TypeFull Port
Structure DescriptionRising Stem
Connector TypeFlange
Features
Made from steel for weldability and greater rust resistance than iron
Rising stem with inside screw lifts with the gate to signal visually when the valve is open
Flanged connections for bolting to pipes
Maximum working pressure of 285 pounds per square inch (psi)
Top-mounted hand wheel for lowering and lifting the gate
Product Description
This class 150 series steel gate valve has a rising stem and flanged connections on both ends. It has a flexible wedge, fully guided integrated seats, and bolted bonnet, and steel construction provides weldability and greater rust resistance than iron. The rising stem moves up and down with the gate, providing a visual signal (when extended) that the valve is open. This stem design also prevent the stem threads from coming into contact with flow to avoid corrosion to extend valve life. This gate valve is full port for reduced friction; Its inner diameter is the same as the inner diameter of the pipe it connects to enable maximum operating efficiency. The maximum working pressure is 285 pounds per square inch (psi), and the working temperature range is -20 to 100 degrees Fahrenheit. This valve has flanged end connections for bolting to compatible-sized pipe flanges. Mounted on top of the valve, a manually operated hand wheel activates the inside screw mechanism, which lifts and lowers the gate to start and stop the flow between the connected pipes. This valve meets the following specifications for quality assurance: American National Standards Institute (ANSI) B16.34, B16.10, B16.5; American Petroleum Institute (API) 600, 598.
| Prod Model: |
FYV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2''-48'' |
| Class: |
150lb-1500lb |
| O-Ring Sealing: |
PTFE,NBR,Rptfe |
| Ends Con: |
RF,Rtj,Sw,Bw |
| Connection Form: |
Flange |
| Material: |
Stainless Steel |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Industrial Usage |
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.
This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.
The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.
Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.
Fully welded ball valve.
Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
