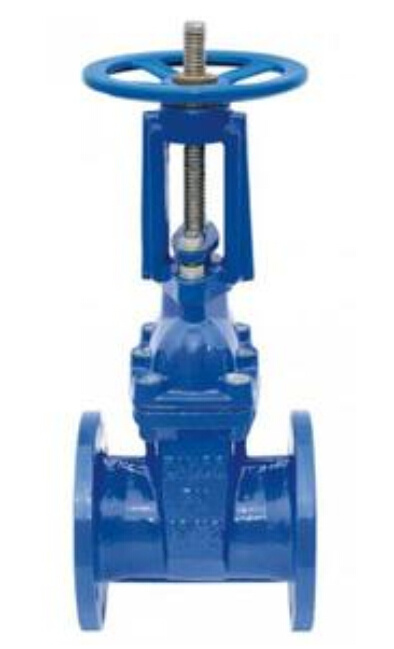

Rising Stem Resilient Seated Gate Valve

Rising Stem Resilient Seated Gate Valve
Price: US $ 29.45-4500/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Type: Gate valve
Size: DN40-1000 or 1.5"-20" or above
Working Pressure: PN10/16
Suitable temperature: 0~100 Celsius
Standard:
(1)Design and manufacture: DIN3352, BS5163, BS5150, , EN593, GB/T12238
(2)End connection: DIN2543-2550, EN1092, AS2129, ISO 5211
(3)Wall thickness: APBS1868
(4)Face to face (end to end): EN 558, DIN3202, ISO5752, BS5155
(5)Inspection and test: EN12266-1, BS6755, ISO5208
Materialfor main parts:
(1)Body: Cast Iron or Ductile Iron
(2)Disc: Ductile Iron coated with EPDM
(3)Stem: SS416, SS410, SS304, SS431
(4)Seat: NR, Hypalon, EPDM, Neoprene, NBR, Wear-Resistant EPDM, Viton, Silicon, Heat-Resistant EPDM, WhiteNBR, WhiteEPDM, EPDM, PTFE
Coating: Fusion bonded epoxy coated
Connection type: Flanged type, Push-on type, Mechanical Joint type, Plain ends type
Sealing: Soft sealing or metal-to-metal seat, Flexible graphite
Operation: Manual, Pheunatic, Electric, Hydraulic and Pnewmatic-Hydraul
Appropriate medium: Air, water, sewage, steam, coal gas, oil
Packaging: Export polywood cases, or as per customers' requirements
Delivery Time: 25 days after order conformed
Payment: By T/T or L/C
Application: Fresh water, sewage, sea water
BodyDuctile Iron
DiscDuctile iron with NBR/EPDM
BonnetDuctile Iron
StemStainless steel
O-ringNBR
GlandDuctile iron
Hand wheelCast iron or ductile iron

Prod Model: BS5163 DIN3352 F4 DIN3352 F5
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Dn40- Dn500
Pressure: Pn10- Pn16
Connection Form: Flange
Material: Cast Iron
Seal Surface: Parallel Gate Valve
Thread Position Of Valve Rod: Inside Gate Valve
Application: Household Usage
Anhui Redstar Vavle Co., Ltd is the backbone enterprise in vavle industry of DunAn Holdings Group which is one of the China's top five hundred enterprise.

The main products conclude drainage system valves, sewage treatment facilities, water meters and so on. Now there are more than 6 series of 660 kinds products which are adopted GB, DIN, BS, AS and have been saled in different countries and regions all over the world.

The company occupies 86, 000 square meters with the workshop of 66, 000 square meters. There are a provincial valve and mold technology R & D center, an EPC casting automated line of annual output 20, 000 ton, an automatic spraying line and 76 items of patent. Besides, there is a well trained and highly qualified team with more than 300 person, half of whom have gotten the college degree and intermediate professional titles.

The company has reached ISO9001 quality management system, ISO14001 environmental management system, ISO10012 measurement management system and special equipment manufacturing license and also CE, WRAS, WATERMARK, GOST, ISO which is awarded as member in National Association of high-tech enterprises, China Valve Association and Drainage and water meter Association.

Holding the core philosophy "profession, efficiency, trust and win-win", the company makes effort to provide customers with convenient, save and comfortable products and services; provide employees with ordered and growing development platform; provide all stakeholders with unceasing growing chance in order to make Anhui Redstar Vavle to be a more outstanding and honourable enterprise.
