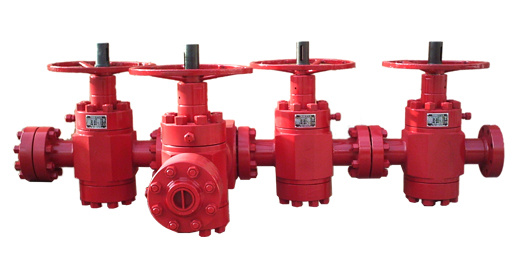

Rising Stem Slab Gate Valve for Wellhead
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Gate ValveGate Valve Product Details:
Pressure: High Pressure
Power: Hydraulic
Structure: Gate
Standard or Nonstandard: Standard
Material: Alloy
Media: Oil
Temperature of Media: High TemperatureDetailed Product Description
Working pressure: 2000PSI to 20000PSI
Nominal Bore: 2.1/16inch to 4.1/16inch(46mm to 103mm)
Working Medium: Oil, natural gas, mud
Working Temperature: -46 Deg. C. To 121 Deg. C. Class LU. | Rising stem slab gate valves manufactured by Chance Door Intl' Co., Ltd. are available in temperature classes L, P, R, S, T, and U specified in API 6A. Gate valves to be used in the 350° F or 650 ° F high temperature can be supplied on request. Fire-proof gate valves also can be supplied to API 6A. Gate valves manufactured by our company are available in 2000psi, 3000psi, 5000psi, 10000psi and 15000psi working pressure, material classes from AA through FF, product specification levels (PSL) from 1 through 3 and performance requirement (PR) 1.
The rising stem slab gate valves manufactured by our company have the same characters as the non-rising stem slab gate valves. For it is designed by rising stem, the close and open of the valves is completely controlled.
Note:
Under pressure, the valve is forbidden to be semi-shrouded, for it will do great harm to the gate valve and great reduce the service life of the valve. |
|
|
|
|
| Parts List: |
| Item | Component | Qty | Material |
| 1 | Body | 1 | 4130 |
| 2 | Bonnet Seal Ring | 1 | 1010 |
| 3 | Gate | 1 | 4130 |
| 4 | Seat | 2 | 4130 |
| 5 | O-Ring | 4 | NBR |
| 6 | Wave Spring | 2 | 410 |
| 7 | Bonnet Stud | 8 | 4130 |
| 8 | Stem | 1 | 410 |
| 9 | Grease Fitting | 1 | Assy. |
| 10 | Bonnet | 1 | 4130 |
| 11 | Bonnet Nut | 8 | 5140 |
| 12 | Stem Lip Packing | 2 | NBR |
| 13 | Packing Ring | 3 | 410 |
| 14 | Packing Gland | 1 | 4130 |
| 15 | Bearing | 2 | Assy. |
| 16 | Stem Nut | 1 | 4130 |
| 17 | O-Ring | 1 | NBR |
| 18 | Oil Cup | 1 | Assy. |
| 19 | Bearing Cap | 1 | 5140 |
| 20 | Handwheel | 1 | 1035 |
| 21 | Stem Protector | 1 | 1035 |
| Prod Model: |
CDGV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| API: |
5000psi, 10000psi, 15000psi |
| Connection Form: |
Thread |
| Material: |
Steel |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Industrial Usage |
| Standard: |
API 6A |
CHANCE DOOR INTERNATIONAL specializes in the supply of equipment and service solutions to the international oil and gas industry. We guarantee quality goods, competitive price, and timely delivery.
Our range of equipment and service solutions include;
Rig Equipment and tools, Service and spares
Wellhead: Annular & RAM type BOP, Chrimstmas Tree, Manifold, Valves & parts under API Standard
Oilfield associated services
Chemicals
Laboratory supplies
Safety products
CHANCE DOOR International has the personnel and experience to ensure that our Rig and equipment packages are manufactured to international standards, and can start up and operate with maximum uptime in the field. With a long history of operating and maintaining onshore and offshore rigs our personnel are well equipped to assist our customers optimize their rig packages to save operational time during drilling and moving activities.
Manufacturing
Through experience, CHANCE DOOR International has established a list of approved vendors that have all the relevant API & ISO certification required as well as proven commitment to quality. During manufacturing of equipment packages CHANCE DOOR International are on site, contributing to the quality of the end product, and its ability to perform in the field. In addition CHANCE DOOR International has developed its own acceptance testing standards that exceed conventional Factory Acceptance Testing.
All of our efforts during manufacturing are aimed at provided the Customer with the peace of mind that when the equipment arrives on location, it is ready to go to work, and it will perform reliably.
CHANCE DOOR International provides comprehensive after sales service, including equipment installation and rig up support, operational training, warranty interface, and supply of technical service and spare parts.
