Rising Stem Type Gate Valve
| Price: |
US $ 70/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |

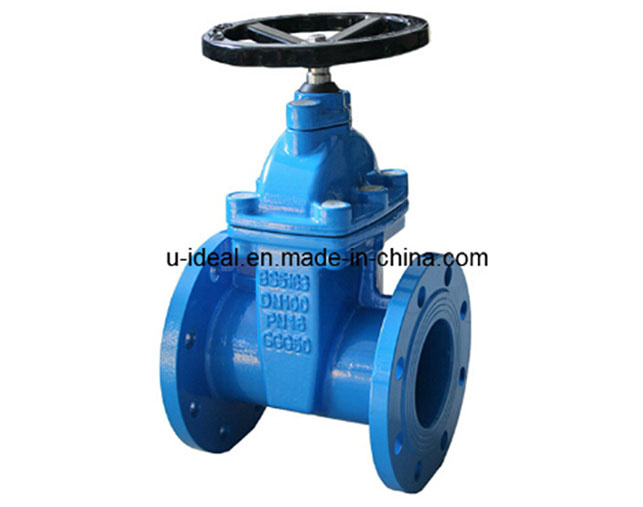

Non-rising Stem Gate Valve
Product Description
Wedge Gate Valve -> Non-rising Stem Gate Valve
Non-rising stem gate valve is used where vertical space is limited or underground. The stem is threaded into the gate. As the handwheel on the stem is rotated, the gate travels up or down the stem on the threads while the stem remains vertically stationary. This type of valve has a pointer indicator threaded onto the upper end of the stem to indicate the position of the gate.
Features of Non-rising Stem Gate Valves:
Non-rising stem and inside stem screwl
Flexible wedge, fully guided
Metal seat and resilient seat available
Renewable seat ring and stem backseat
Manual operation standard, gear operator and actuation available
Flange end: Raised face or ring type joint
Applicable standards of Non-rising Stem Gate Valves:
A) Design & Manufacture: API 600, API 6D, BS 1414
B) Face to Face: API 6D, ASME B16.10, EN 558, DIN 3202, BS 2080
C) Connection End: ASME B16.5, EN 1092, JIS B2220
D) Test: API 600, API 6D, EN 12266
Sizes: 2" - 36" or DN 50 - DN 900
Pressure Rating: Class 150 - Class 900 or PN 16 - PN 150
Valve Materials: WCB, LCB, WC6, WC9, CF8, CF8M, Cast iron, etc.
Operated by: Handwheel, Gear, Pneumatic, Hydraulic and Electric actuator
Would you like to get more products information or order it, please call me, or click Inquiry Now to fill in the Form.
It helps you get more informations you need to trade confidently with suppliers.
Related products: Gate Valve Ball Valve Check Valve Globe Valve Butterfly Valve Knife Gate Valve
| Potential faults | Faults reason | method of troubleshooting |
| Seal leakage | Seal ring impurities | Clean seal ring |
| Damage of the sealing | Replace seal ring |
| upper seal leakage | Upper seal packing loose | Screw down packing or cover bolt |
| Upper filling degradation | Oiling or replace the filling |
| Flange surface | The bolt haven't be tighten equally | Tighten the bolt with equally force |
| Flange seal invalidation | Replace flange gasket |
| switch jam | Driving device to dry | add lubricants to the driving device |
| switch malfunction | Driving device damage | Replace driving device or
repair by professional people |
| Prod Model: |
X30Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sizes: |
2" - 36" or Dn 50 - Dn 900 |
| Pressure Rating: |
Class 150 - Class 900 or Pn 16 - Pn 150 |
| Valve Materials: |
Wcb, Lcb, Wc6, Wc9, CF8, CF8m, Cast Iron, etc. |
| Operated By: |
Handwheel, Gear, Pneumatic, Hydraulic and Electric |
| Design & Manufacture: |
API 600, API 6D, BS 1414 |
| Material: |
Cast Iron |
| Connection Form: |
Folder |
| Seal Surface: |
Parallel Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
