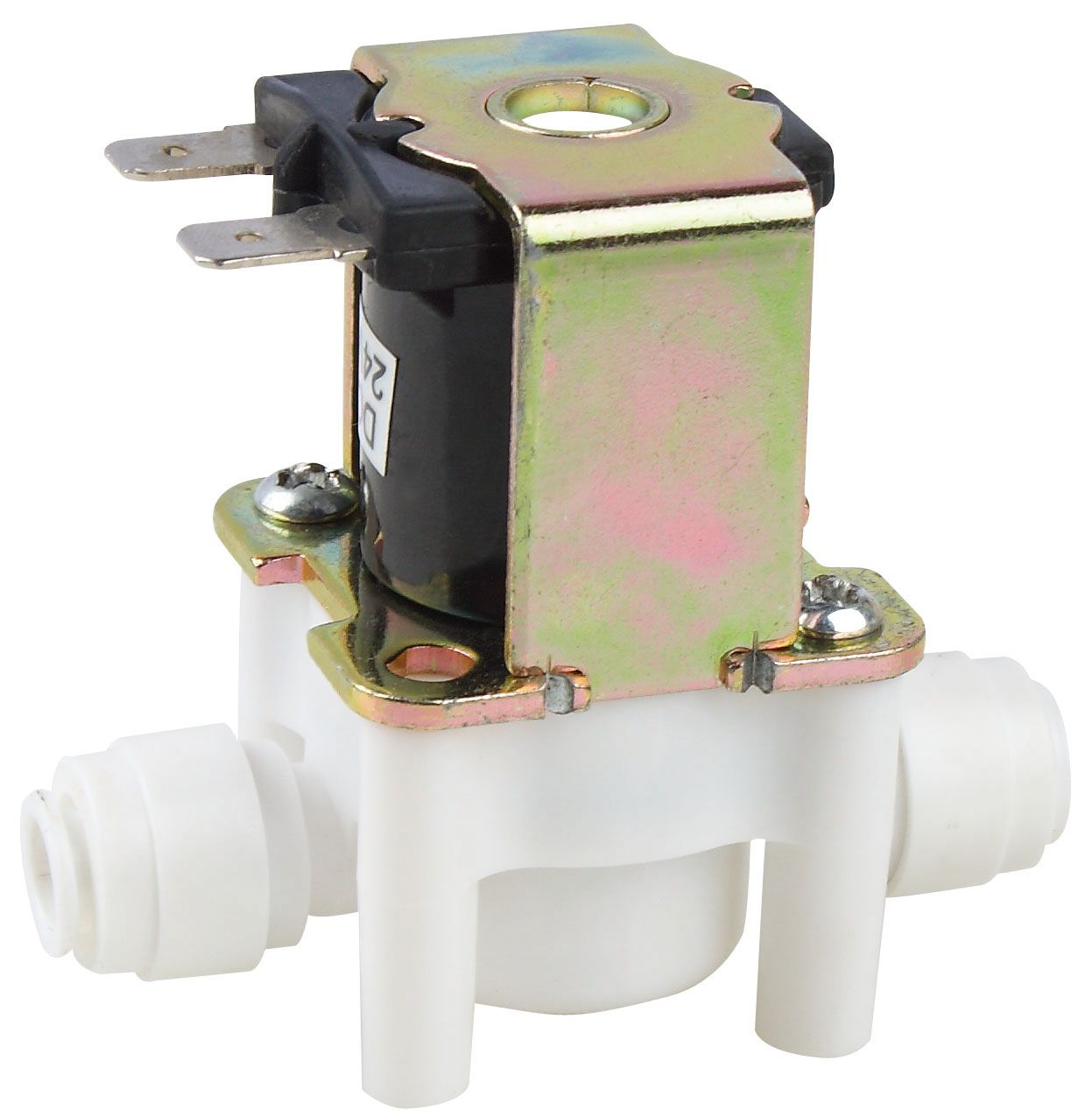

RO Purifier Water Plastic Valve (STF-2)

RO Purifier Water Plastic Valve (STF-2)
Price: US $ 3/Piece
Trade Terms: FOB,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Inlet Water Solenoid Valve for Water Purifier
Small Solenoid Valve

1. Voltage: DC12V, DC24V, DC29V, DC36V, DC48V, AC110V, AC220V;

2. Flow rate: More than 3.5L/min;

3. Inlet/outlet port size: 1/4", 3/8", 1/2";

4. Fluid media: Air, water, oil, gas;

5. Fluid temperature: -10° C~80° C

Solenoid Valve
Air Water Solenoid Valve
Flooding Water Solenoid Valve
Connection thread size: 1/2 in(M)

Medium temperature: 1º C~80º C

Working pressure: 0.012~0.8MPa

Voltage: DC 12V 24V 220V
Model STF-2
Action way Pilot type
Type NC self-holding (at impulse voltage)
Working pressure 0.012MPa-0.8MPa
Connection way Φ 15 male thread inlet & outlet
Applicable medium Water
Valve body material Plastic valve body, copper joint
Medium temperature 0-88 o C
Environment temperature 0-88 o C
Rated voltage AC220V, AC110V, DC110V, AC24V, DC24V, AC12V, DC12V, DC9V
Variable voltage of supply voltage -10%~10%
Insulation resitsance Tested by DC500V megohmmete for 1 min, the insulation resistance should ≥ 100M
Watertight performance Hydrostatic pressure 0.02Mpa, leakage ratio< 0.1mL/min

Hydrostatic pressure 0.03~0.8Mpa, leakage ratio 0mL/min
Hydraulic pressure withstand Withstand hydrostatic pressure of 1.2MPa for 5min, no unbroken, deformation or outside leakage
Reliability 0.01~0.02MPa, make and break for 10s respectively, lasting 1h, the check valve should be unblocked.
Flow characteristics Pressure 0.02Mpa Flux > 3L/min; Pressure 0.1Mpa Flux> 8L/min;

  Pressure 0.3Mpa Flux > 13L/min; Pressure 0.8Mpa Flux > 25L/min
Across layers insulation Withstand high voltage pulse for 2s, it should be normal.
Continuously energized Energize for 12h, but not connect through the water, the valve should be no deformation, and the coil should not be burned;
Withstand voltage The acceptable high-voltage power between electric conduction and outer without electrified metal Withstand AC1500V, s50Hz for 1min, no flashover or breakdown; Withstand 1800V, 50Hz for 1s, no flashover or breakdown;
Non-return function Yes
Filtering function Built-in filter screen
Adjustment function No
Angle between coil and valve body 360, 270, 180, 90
Power supply connection way Lead  or  Inserting type, adopting 6.3 plug spring.













































voltage (V) DC20.4-27.6
current (A) 0.18± 0.01
power (W) 4.5
pressure range (Mpa) 0.02~0.8
flow-rate range (L/min) 0.3Mpa  > 3
resistance (20° c) 130Ω

Prod Model: STF-2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Distribution of Direct Acting
Connection Form: Thread
Valve Structure: Pilot Membrane Structure
Power Supply: DC Solenoid Valve
Application: Water Industrial Usage
Yuyao Shuntong Solenoid Valve Co., Ltd, which founded in 2005, is a technical company specialized in designing and manufacturing solenoid valves, cylinders, flow meters, and heating air-conditioning control products. Our products have been widely applied in the automation of the fluid control.

Reliable performance, reasonable price, and good quality of service, well received by the customer's trust

We persist in providing our customers with superior quality products and perfect service by constantly innovating and self-improvement. Customers' satisfaction is our unswerving pursuit. Sincerely welcome to visit and supervise our company

We hope to develop the business with more companies in the world, and we are convinced the cooperation can bring us a bright future with our common efforts.
