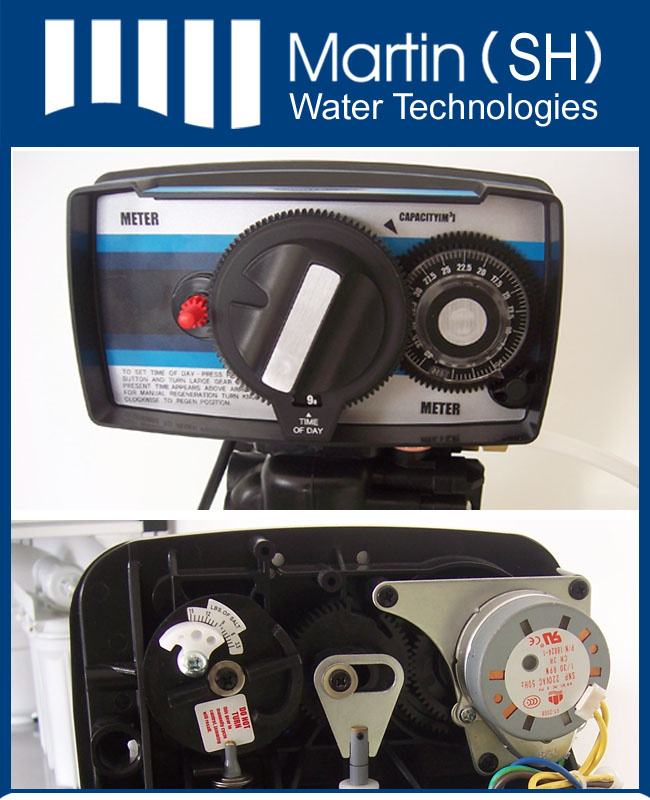

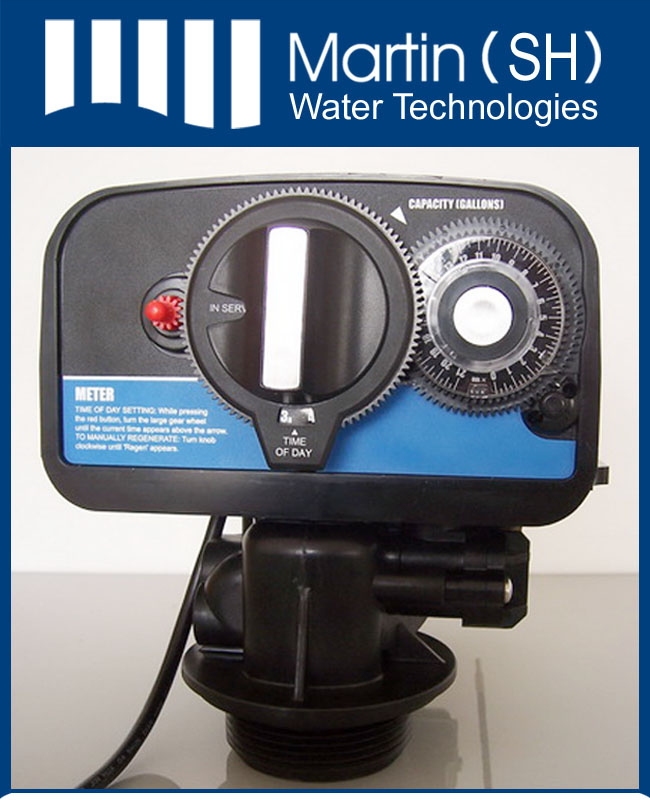

RO Water Softener/Filter Control Valve

RO Water Softener/Filter Control Valve
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union
Products Name:water flow control valve

Residential Softener and Filter

Manual Filter Valves
1. Adopt the high degree pottery, seal slice with scuff resistance, corrosion proof, perfect, sealing
2. No water flows out in the drain line when in washing position with signal tank valve
3. Side control available.

Automatic Filter Valves
1. Adopt the high degree pottery, seal slice with scuff resistance, corrosion proof, perfect, sealing
2. No water flows out in the drain line when in washing position with signal tank valve
3. It adopts LED dynamic colorful screen: The colorful screen move to flicker during running, otherwise it is in the state of washing
4. Keyboard locked function: The key set will lock automatically if no operate more than one minute
5. Indication and parameter saved after power off
6. Repeating-washing can be set

Manual Softener Valves
1. Adopt the high degree pottery, seal slice with scuff resistance, corrosion proof, perfect, sealing
2. No water flows out in the drain line when in washing position with signal tank valve
3. Side control available.

Automatic Softener Valves
1. Adopt the high degree pottery, seal slice with scuff resistance, corrosion proof, perfect, sealing
2. No water flows out in the drain line when in washing position with signal tank valve
3. It adopts LED dynamic colorful screen: The colorful screen move to flicker during running, otherwise it is in the state of washing
4. Keyboard locked function: The key set will lock automatically if no operate more than one minute
5. Indication and parameter saved after power off
6. The interval back-wash time can be set (suitable for F68,69),multiple operating in service with one time backwash. Saving salt and water.
7. Bypass available for valves

Automatic Softener Valves F79 F82 Series
1. It adopts LED dynamic colorful screen with language selecting interface including English, Chinese, Russian, Spanish, French, Italian, Deutsch
2. The down-flow and up-flow regeneration can be chosen.
3. Unit of measurement can be choose L, gal or M3.
4. With the connector of salt shortage alarm and with disinfect connector
5. No hard water by pass when regeneration for type A, and with hard water bypass when regeneration for type B


Automatic Valves D (LCD Display) Series ( filter and Softener)
1. It adopts LED dynamic colorful screen with language selecting interface with English and Chinese.
2. The Softener is featured with the connector of salt shortage alarm and disinfect connector
3. For filter valves, the inlet and outlet are behind the display screen, convenient to connect.
4. Foreground mode and background mode available

Industrial and Commercial Control Valves

Manual Filter Valves
1. Adopt the high degree pottery, seal slice with scuff resistance, corrosion proof, perfect, sealing
2. No water flows out in the drain line when in washing position with signal tank valve
3. Side control available


Automatic Filter Valves
1. Adopt the high degree pottery, seal slice with scuff resistance, corrosion proof, perfect, sealing
2. No water flows out in the drain line when in washing position with signal tank valve
3. It adopts LED dynamic colorful screen: The colorful screen move to flicker during running, otherwise it is in the state of washing
4. Keyboard locked function: The key set will lock automatically if no operate more than one minute
5. Indication and parameter saved after power off
6. Repeating-washing can be set. Choose by day or by hour in service
7. Single port control output: control inlet booster pump or outlet solenoid valve
8. Remote handle input signal: it can accept pulse signal then start to regeneration

SeriesMT-F11, MT-E, MT-C, MT-R SeriesMT-H SeriesMT-G, MT-GM, MT-D Series
Flow Rate(50PSI/3.5bar) Valve Alone
Continuous (15PSI/1bar drop)20GPM/76LPM14GPM/53LPM20GPM/76LPM
Peak (25PSI/1.7bar drop)26GPM/98LPM18GPM/68LPM26GPM/98LPM
Max. Backwash    (25PSI/1.7bar drop)7GPM/26LPM7GPM/29LPM17GPM/64LPM
CV(1PSI/0.07bar drop)5.0 3.6 5.0
Flow Rate(50PSI/3.5bar) Softener(15PSI/1bar Drop)
8×44 0.75CF/21L resin9.6GPM/36.5LPM9.2GPM/35LPM9.6GPM/36.5LPM
9×48 1.0CF/29L resin11.5GPM/43.5LPM10GPM/38LPM11.5GPM/43.5LPM
10×54 1.5CF/43L resin11.8GPM/44.5LPM10.2GPM/38.6LPM11.8GPM/44.5LPM
12×48 2.0CF/57L resin12.8GPM/48.5LPMN/A12.8GPM/48.5LPM
14×65 3.0CF/85L resinN/AN/A14.5GPM/55LPM
16×65 4.0CF/113L resinN/AN/A15GPM/57LPM
Regeneration
Downflow/UpflowDownflowDownflowBoth
Cycles755
Adjustable cyclesBrineBrineAll
Time available180Minutes180MinutesUp to 999 Minutes per cycle
Flow Meter
Accuracy0.25-15GPM/0.95-57LPM±5%N/A0.25-15GPM/0.95-57LPM±5%
Capacity RangeStandard 125-2100Gallon/0.5-8m3N/A1-99,999
Extended 625-10800Gallon/2.4-40m3
Mounting& Shipping
Inlet/Outlet1" or 3/4", NPTor BSP3/4" BSP1" or 3/4", NPTor BSP
Base2-1/2"-8 UN2-1/2"-8 NPSM2-1/2"-8 NPSM
Distributor pilot1.05" OD1.05" OD1.05" OD
Drain Line1/2" ID1/2" ID1/2" ID
Braine Line3/8" OD3/8" OD3/8" OD or 3/4" OD
Height from top of tank7"/178mm7.9"/200mm7.9"/200mm
Weight(single valve gross)Timer 2.3KG/Meter 2.5KGTimer 5.2KG2.3KG
Working
Electrical rating220V,110V,24V-50Hz,60Hz220V,110V,24V-50Hz,60Hz220V,110V,24V-50Hz,60Hz
Max. VA3VA3VA3VA
PressureHydrostatic: 300PSI/20bar
Working: 20-120PSI/1.4-8bar
Hydrostatic: 300PSI/20bar
Working: 20-120PSI/1.4-8bar
Hydrostatic: 300PSI/20bar
Working: 20-120PSI/1.4-8bar
Temperature1-43 C/34-110F1-80C/34-175F1-43C/34-110F

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Water Capacity: 10t/H
Water Inlet/Outlet: 2"M(Outer Tooth)
Martin Water Technolgoies Inc. The subisidary of Martin (HK) International Limited in Shanghai. A professionally, technologically integrated manufacturer and distributor, carrying out activities in the filed of water treatment.

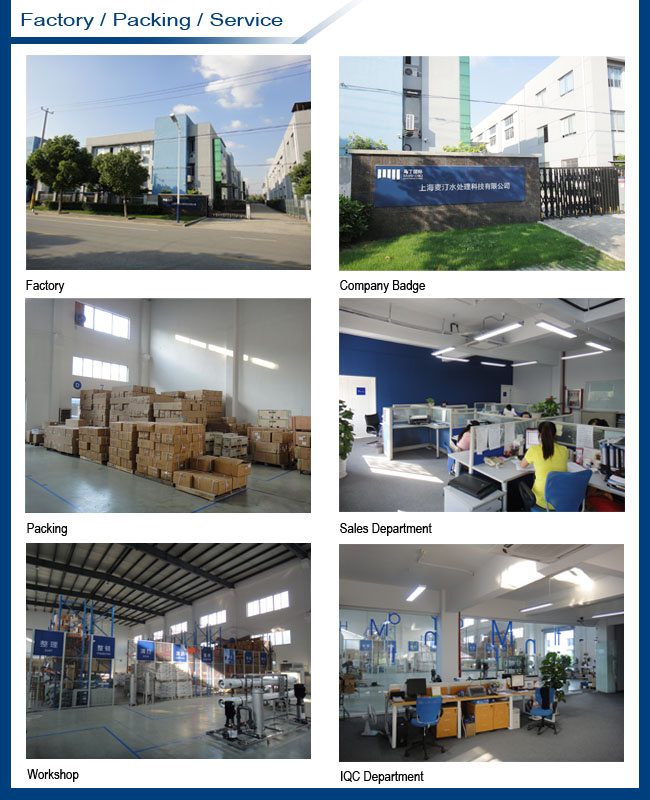

With the production facility "Martin Water Technologies Inc" in Shanghai, Martin (HK) International Limited has been managing to quickly and aggressively deliver the products abroad with its emphasis on quality control and customer satisfaction. Martin Products have earned an industry-wide reputation for high quality and superior performance. Many clients in Europe, America, Asia, Africa and Middle East use technologies, products and service of Martin, among them are well-known companies.

Being a designer and manufacturer of the commercial and industrial reverse osmosis systems, Martin (HK) International Limited provides both standard and customized designs in a large range of different systems, including pretreatment and post-treatment equipments. Martin is able to design the right products to fit your application and the best solution for your requirements.

Martin (HK) International Limited has dedicated the efforts into quick and prompt service, keeping close ties with clients, and always having an open and clear channel of communication with all the business partners.

Martin (HK) International Limited and its division Martin Water Technologies Inc. Operate internationally and are constantly developing Martin technology, the companies offer clients worldwide the most effective and advanced water treatment solutions for

Power industry
Industrial processes
Cooling systems
Steam and heat boilers
Drinking water
Waste Water
And also carry out wholesalers of spare parts and materials for the water treatment technologies.

Industries we serve
Power industry
Oil and gas refinery
Food industry
Beverage
Chemical industry
Municipal and government
Production of fertilizer
Textile
Pharmaceutics

Vision
To be a professional company, offering a full range of water treatment products and services in the global market, to constantly improve Martin technologies by developing and implementing new ideas depending upon progressive market requirements.

Mission:
Sales and introduction of advanced water treatment technologies for industry and household needs, directed to improve customer's production quality, to decrease industrial expense and increase its competitiveness, considering features of its manufacture and ecological requirements.

We believe "Life Is Easy To Be Pure" with Martin products.
