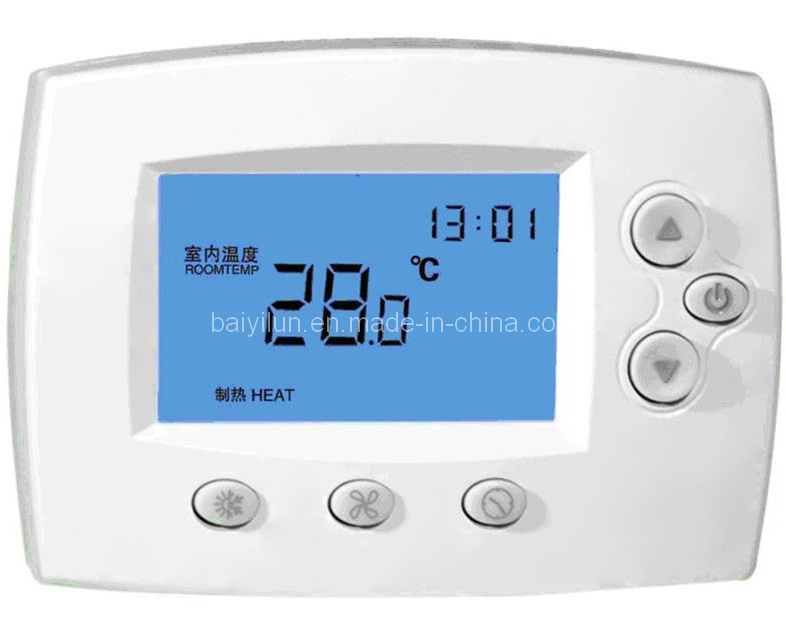

Room Thermostat
Differential temperature: 1 degree
Setting temperature: 5 degree ~35 degree
Temperature range: Zero ~ 40 degree
Basic function:
1. Recommended for control of underfloor heating and electrical heating.
2. Electronic on/off control up to 4000W, 16A or 5000W, 20A
3. Six daily programmable time settings, from Mondays to Sundays
4. Large Back-lit display, LED screen, easy-to-see and read
5. Infrared remote-controlled function(option)
6. Built-in interrupter
7. Two work mode switchover: (programmable, non programmable)
8. Display temperature recalibrates
9. Low temperature protection function
10. Surveys, display and set room temperature
11. Memory function: Parameters are permanently held in memory and retained during power outages
12. Anti-freezing protection
13. 2-sensor: Room sensor with floor limiter sensor
Product Specifications:
Voltage: 110(± 10%)VAC/220(± 10%, -15%)VAC, 50/60HzMounting: Mounts directly onto wall or wall-box
Temperature range: 0 degree - 4 degree
Sensor type: NTC
Color: White ivory
Relative humidity: < 85% (23 degree)
Dimensions: 124mm× 90mm× 34mm(H/W/D)
Size of display: 66 mm × 46 mm (H/W)
Avonflow Baiyilun TRV Co., Ltd. (old name "Wenzhou Baiyilun Hardware Co., Ltd") specializes in the development and manufacture of heating and temperature control products. Baiyilun constant temperature control valves, used in pressure temperature regulator of city heating and hot water system, are equipped with body as automatic constant temperature control valve. This valve doesn't need exterior energy while automatically controlled by indoor temperature, which can not only save energy but also protect environment and give you a suitable indoor temperature.
Manufacture and test of Baiyilun constant temperature control valve of radiator is according to GB/T13927-92; EN215-1 standard and through the test of Beijing Construction Project Quality Testing Centre. Our company also has advanced and complete testing and inspecting instrument.
2 EN215 Standard Testing Bench, 8 automatic plastic injection machines, Over 10 years production experience on TRVs, 30 CNC machines, Over 40 exported Countries, Production Capicity around 3, 000, 000 pieces/year, Welcome you come to visit us and cooperate with us.
