Room Thermostat
1. 110/220 VAC
2. 16A/20A
3. Thermostat for hot water radiant heating systems
Digital Thermostat:

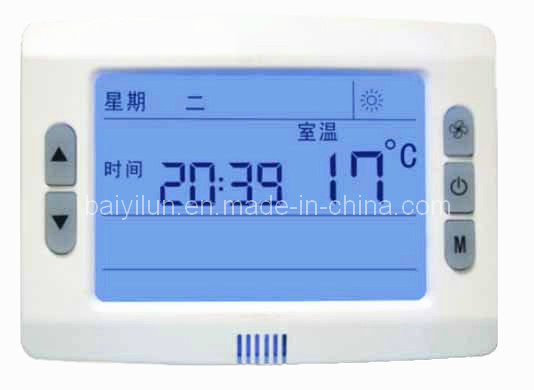

Model 509 Programmable Heating Thermostat
509 series, large LCD digital thermostat, 110/220VAC± 10%, 16A thermostat for hot water radiant heating systems and electric heating cable system.
Basic function:
Electronic on/off control up to 4000W, 16A
Equipment temperature: 20-90 ° C
Four daily programmable time settings, Monday to Sundays
Large Back-lit display, LCD Screen, easy-to-see and read
Infrared remote-controlled function(option)
Built-in interrupter
Two work mode switchover: (programmable, non programmable)
Display temperature recalibrates
Low temperature protection function
Surveys, display and set room temperature
Memory function: Parameters are permanently held in memory and retained during power outages.
Anti-freezing protection
Lock/Unlock keypad to avoid any mistake operations(option)
Product Specifications:
Voltage: 110(± 10%)VAC/220(+10%, -15%)VAC, 50/6OHz
Differential Temperature: 1° C Max
Setting Temperature Range: 5° C-35° C
Mounting: Mounts directly onto wall or wall-box
Temperature range: 0 ° C- 40° C
Sensor type: NTC
Color: White ivory
Relative humidity: <85%(23° C)
Dimensions: 120mm× 90mm× 45mm(W/H/D)
Size of display: 57mm× 83mm(H/W)
Operate 509 thermostat:
Power on/off: Press power button, the thermostat will switch between off mode and on mode.
Desired power on setting: Press twice the"M"button until the "ON/OFF" display to enter desired power on mode, press up or down button to adjust the valve of time.
Desired power off setting: Press thrice the "M"button to enter desired power off mode, press up or down button to adjust the valve of time.
Sleep mode: Press the "M" button to enter sleep mode, press the up or down button to select the sleep status.
Non-programmable setting: Press the "M" until the sun display and press the up or down button to select the temperature valve.
Programmable setting: Press the "M" until the face display and press the "M" button to enter the programmable setting mode.
Display temperature recalibrates: The temperature of every corner is different by convection. The thermostat can be adjusted the valve range from -8° C to + 8° C of room temperature. Press the "M" button and hold it for more than 6 seconds, the thermostat will enter setting mode, and press up or down button to select the desired temperature setting.
Over-temperature protection
Failure codes:
E1= Room sensor short-circuit or disconnected
E2= Room sensor open-circuit
