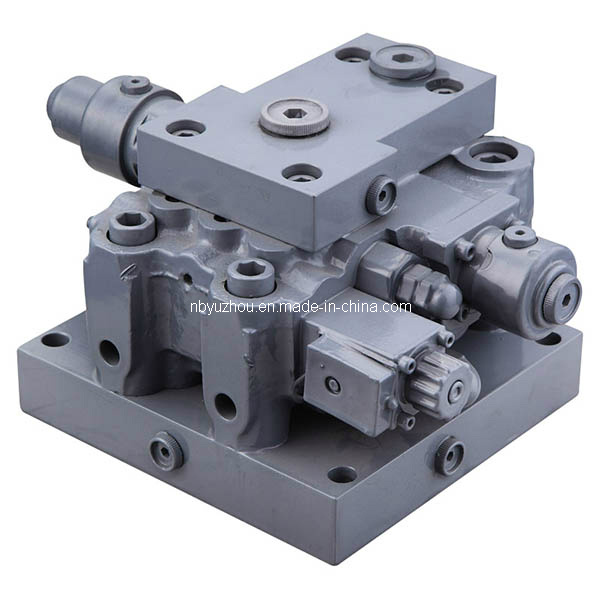

Rotary Cushion Valve Xh10z-a Slewing Cushion Valve
| Price: |
US $ 400/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Rotary cushion valve
Application:This series of rotary cushion valves can be widely applied to the rotary mechanism of hydraulic engineering machinery (open-type system). It is a kind of high-performance multi-function combination valve. Its quality has been strictly tested by China National Construction Machinery Quality Supervision Testing Center according to JB/T4030.1-1985 and met the reliable requirement GZJRZ No. 020. It can replace an inlet valve.
Functions and features
1. During the fast start and stop, acceleration and deceleration and rotation process, it can automatically reduce cargo vibration and the shaking of arm rest, cut down the dynamic shock pressure and ensure that cargo and wire rope keep vertical and that the arm rest can synchronously rotate in a precise and steady way.
2. Apart from automatic protection against shock and impact, it has normal overload automatic protection function and also hydraulic braking function at neutral position.
3. Its inside is installed with a bi-directional oil charging check valve. When the operating valve suddenly resets or the rotary oil motor produces negative moment, A (or B) cavity of the valve recharges oil from T cavity (return oil cylinder cavity) automatically to prevent system suction.
4. The operating valve spool is designed with an inside check valve to release the shock of external load on pump.
5. In addition to normal rotary operation, the solenoid valve can be actuated to realize free rotation at low pressure.
6. It has a more compact structure, smaller volume and stronger generality.
Basic parameters
1. Rated flow QH=40~120L/min;
2. Rated working pressure pH=25MPa;
3. Rated pressure of adjustable back pressure valve Pb=0.7~4.7MPa;
4. Rated working voltage of solenoid valve: DC 24V;
5. Hydraulic control pressure: Px=0.6~2.2MPa

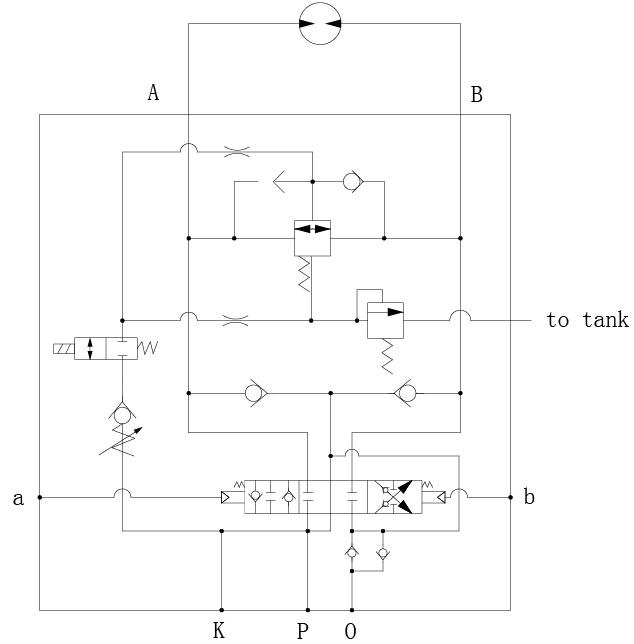

(or operation by mechanical mode)XH10Z-A symbols

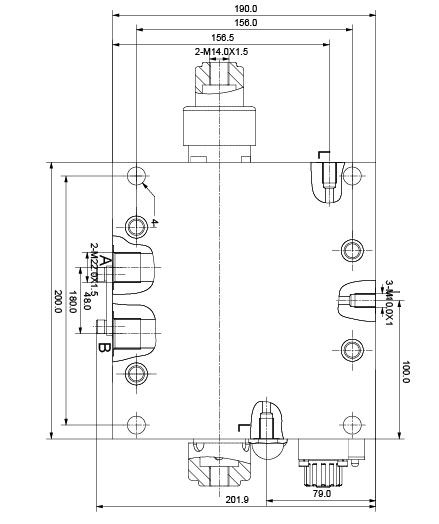

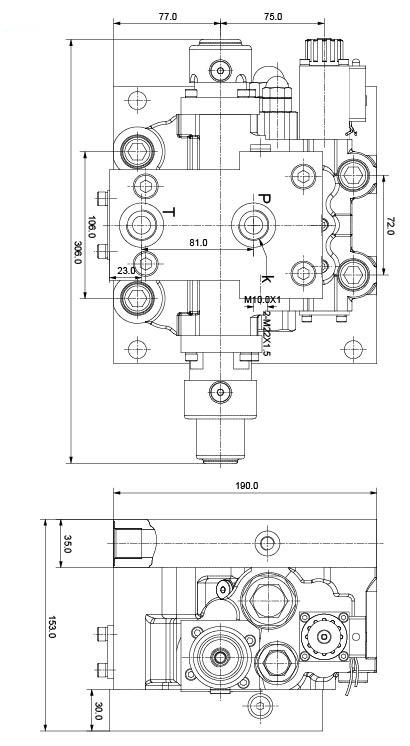

XH10Z-A dimensions
| Prod Model: |
XH10Z-A Slewing Cushion Valve |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Hydraulic Control Unit |
Ningbo Yuzhou Hydraulic was founded in 1995, specialized in mobile hydraulic valves and motors, Including hydraulic motors, flow sharing control valve, slewing cushion valve, balance valve, proportional valve, cartridge valve, relief valve, check valve etc, which are widely used in concrete pump machinery, excavators, mobile cranes, forklift, hydraulic winches, drilling equipment, garbage trucks, agricultural/forestry machines, Aerial Work Platforms etc
50000 + M² Factory area,
30+ Senior experts and engineers R&D team
20+ Quality control
60+National Patent and 30 innovation patent
200+ Staff
In 2005 established "Yuzhou hydraulic valves Engineering Center", has more than 30 Senior experts and engineers R&D team, Has developed 7 series of more than 300 kinds of products, and got 60 national patent which 30 innovation patent.
Yuzhou cooperated partner including XCMG, SANY, Zoomlion, LIUGONG, Manitowoc, TEREX, etc.
Yuzhou not only manufacturing for you, but also can design the hydraulic valves or hydraulic system according your demand.
