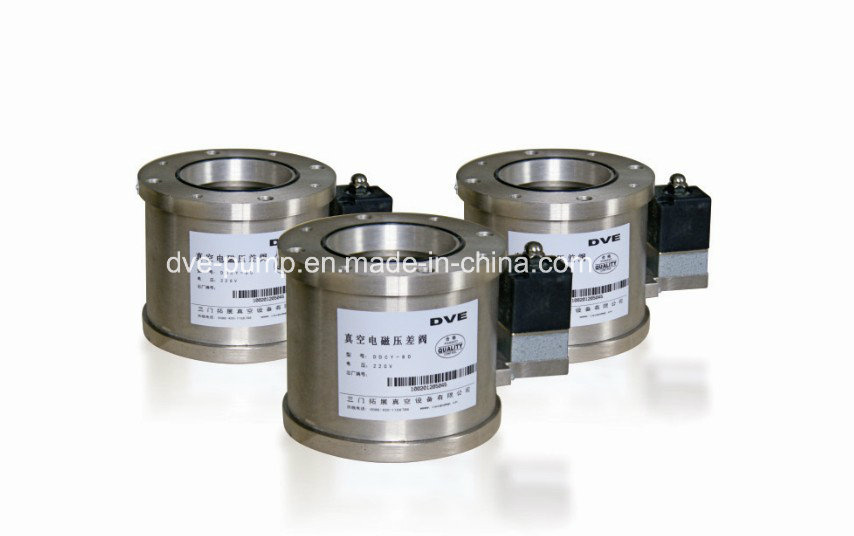

Rotary Piston Vacuum Pump Solenoid Valve

Rotary Piston Vacuum Pump Solenoid Valve
Price: US $ 60-65/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 100/Piece
Pay Type: L/C,T/T,Paypal,Western Union

DESCRIPTIONS
DDCY-Q series vacuum pressure solenoid valve, which is installed on a dedicated mechanical vacuum pump. Installed in the mechanical vacuum pump inlet, and synchronize the opening and closing of the pump.

When the pump stops working or power supply is suddenly interrupted, the valve can rely on the force of atmospheric pressure and vacuum valve plate closes automatically closed vacuum system to maintain its vacuum, and the air filled through the orifice valve into the pump chamber in order to avoid contamination of the vacuum pump oil countercurrent system.

Applicable working medium: air and non-corrosive gases.


SPECIFICATIONS
MODELDN(mm)SIZE(mm)SPECIFICATIONMATERIAL
DD1Hn-dLEAK RATE(Pa .L/s)OPEN&CLOSE TIME(s)POWER(w)SUPPLYWEIGHT(kg)VALVE BODYSEAL
DDCY-20Q206550504-M6<6.7X10-2<314-220V 50Hz1.3CARBON STEELRUBBER
DDCY-25Q257055851.5
DDCY-32Q327864952
DDCY-40Q408570953
DDCY-50Q50110901004-M83.5
DDCY-65Q651251051105
DDCY-80Q801451251206.5
DDCY-100Q1001701451408-M1010
DDCY-125Q12519517016515
DDCY-150Q15022019519020
DDCY-200Q20027525024012-M1030


SOLENOID VALVE DIAGRAM
PHYSICAL PICS

Delivery Time: 7-30Days, According to factory's production schedule
Sea Port: Ningbo/Shanghai FOB


DIFFERENTIAL PRESSURE VALVE
DDCY-Q series vacuum pressure solenoid valve, which is installed on a dedicated mechanical vacuum pump. Installed in the mechanical vacuum pump inlet, and synchronize the opening and closing of the pump.

When the pump stops working or power supply is suddenly interrupted, the valve can rely on the force of atmospheric pressure and vacuum valve plate closes automatically closed vacuum system to maintain its vacuum, and the air filled through the orifice valve into the pump chamber in order to avoid contamination of the vacuum pump oil countercurrent system.

Applicable working medium: air and non-corrosive gases.
Note: The uper flange on the pressure diffenence with a sealing groove, the lower flange without sealing groove


STMDESCRIPTIONQTYUNIT PRICE (USD, FOB)REMARK
4BELT512.5*
13O-RING27*
14SHAFT SEAL29*
14ASHAFT SEAL310*
16LONG SHAFT SLEEVE115*
17O-RING53.8*
18BEARING232**
21GAS BALLAST VALVE123*
25SHORT SHAFT SLEEVE212.5*
29O-RING15*
32KEY26.5**
34KEY125**
35KEY212.5**
45VACUUM RESERVOIR OIL VALVE175**
46OIL FILTER UNIT137*
51O-RING19*
58MIDDLE SHAFT SLEEVE215*
59O-RING14*
63O-RING17*
67O-RING119*
87O-RING11.25*
88O-RING11.25*
89SOLENIOD VALVE172*
92O-RING17.5*
100POPPET VALVE372*
100CVALVE CAP610*
100DSPRING182.5*
100EPOPPET VALVE66.5*
100FVALVE DECK330*
100GO-RING35*
103O-RING225*


DESCRIPTIONS
Vacuum bellows for connection between the device and piping, pipe and tubing. It plays damping, disinfection and compensation due to the vacuum bellows unique features, it is widely used in industrial fields of scientific research, aerospace, aviation, petroleum, chemical, pharmaceutical, electronics, electrical, vacuum processing.

SPECIFICATION
SizeWaveforms
Φ5036912
Φ80
Φ100
Φ150
Φ200
Φ250
Φ300
Φ400
Φ500
Φ600
Φ700
Φ800
Φ900
Φ1000
Φ1200
Φ1400
Φ1600
Φ1800
Φ2000
NOTE:Vacuum Bellows be devided to loose flanges and without loose flange, the size, length and waveforms can also be customized according to customer's requirements.

Delivery Time: 7-30Days, According to factory's production schedule,but we can follow your first order time
Sea Port: Ningbo/Shanghai FOB

IVF VACUUM PUMP INLET OIL MIST FILTER
Filter material is stainless steel woven mesh and stainless steel  punching hole mesh, which is used in preceding stage dewater in heavy oil combustion system, can also be used for chemical liquid filtration, precision is 100 um
Filter element material is stainless steel round microporous mesh, apply to the pretreatment and post-treatment system of electronic, petroleum, chemical, pharmaceutical, food and other industrial departments. To further purify water quality which contains low suspended impurities (less than 2 ~ 5 mg/L).

OMF VACUUM PUMP OUTLET OIL MIST FILTER
My company developed OMF series outlet oil mist filter for rotary piston vacuum pumps and rotary vane vacuum pumps. These oil mist filters can filtrate oil mist effectively which discharged by vacuum pumps. Reducing environment pollution significantly and reducing the oil consumption effectively. OMF oil mist filters have by pass valves and exhaust pressure display. If exhaust pressure is too high, by pass valve will be opened automatically for reducing pressure. Compared to other general oil mist filters, OMF oil mist filters are more secure, more reliable. The outer layer of filter core has removable cloth for replacing or washing when the cloth is dirty, greatly extending the life of filter core.

SPECIFICATIONS
Model OMF-40 OMF-50 OMF-63 OMF-80 OMF-100 OMF-125 OMF-150
Outlet Dia (mm) DN40 DN50 DN63 DN80 DN100 DN125 DN150
Rated Gas Flow (L/S) 30 60 150 220 300 450 600
By Pass Valve Working Pressure (MPa) Relative Pressure 0.025 Absolute Pressure 0.125
Max Discharge Pressure (MPa) Relative Pressure 0.04 Absolute Pressure 0.14
Connected Vacuum Pump Model 2H-15DVA 2H-15DVW H-25DVA H-25DVW 2H-30DV 2H-45DVA H-50DV H-60DVA 2H-50DV 2H-70DV 2H-80DV 2H-100DV3 H-70DV H-100DV H-120DV 2H-100DV 2H-120DV 2H-160DV H-150DV H-160DV H-215DV 2H-150DV 2H-225DV H-225DV H-300DV 2H-300DV H-400DV 2H-340 H-450 2H-450 H-600DV
Net Weight (kg) 13 17 23 35 60 80 110

ADVANTAGE
1. High vacuum, high exhausting efficiency in medium or high vacuum, wide working range, obvious energy-saving results.
2. Integrated rack, compact structure, small required space.
3. High automation, simple operation, easy maintenance, safe, reliable and durable running.
4. To customize a special pump system as per the specific needs of the end user.

APPLICATION
Widely used in vacuum coating, vacuum metallurgy, vacuum heat treatment, vacuum drying, vacuum impregnation, vacuum strainer, poly-silicon production, aerospace simulation and so on.

WE CAN PROVIDE YOU
1. On-time Delivery, with More Choice
2. Perfect Technical Support
3. Customized Vacuum Solutions and Service
4. Samples Available
5.  Long Quality Guarantee
6. Fast Response to Customers' Feedback in 12 hours

OVERVIEWS OF FACTORY:

DEVELOPMENT VACUUM EQUIPMENT CO., LTD
ADD:DONGGANG INDZONE, TAIZHOU, ZHEJIANG, CHINA PC: 317106
TEL:+86-576-83598308 FAX:+86-576-83598309

Prod Model: DDCY-25Q
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Ddcy-20q
Nominal Diameter(Dn): 20mm
Dimensions: D/D1/H/N-D: 65/50/50/4-M6 mm
Leak Rate: <6.7*10-2PA.L/S
Open And Close Time: <3s
Power Consumption: 14W
Power: 220V, 50Hz
Weight: 1.3kg
Connection Form: Tubular
Type: Direct Acting
Valve Structure: Direct-Acting Piston Structure
Power Supply: DC Solenoid Valve
Application: Household Usage
Usage: Avoid Oil Countercurrent
As a plant, we specialized in design and manufacture vacuum pumps, vacuum systems for more than 20 years.

Presently DVE products include Roots Vacuum Pump, Water Ring Vacuum Pump, RotaryVane Vacuum Pump, Dry Screw Vacuum Pump, All kinds of Vacuum Systems, Vacuum Stations, Vacuum Spare Parts and the most extensive ranges of rotary piston vacuum pumps in the world, which are widely used in electronics, electrical, metallurgy, coating, ceramics, pharmaceuticals, chemical, papermaking industry, vacuum heat treatment, vacuum drying and impregnation for transformer, freeze-drying, energy industry, aerospace, or other fields.

We are equiped with:

1 Professional R&D team

2 Complete & Advanced production Line

3 Efficient & Considerate after-sales service -Fast Response to Customers' Feedback in 12 hours

We can offer you:

1 Customized Vacuum Solutions

2 On-time Delivery

3 Perfect Technical Support

4 Ture One Year Warranty - If pumps appear quality problems, we assure you free replacements within one year.

DVE - Where high quality is standard, responsibility lies.
