Application
This series of pump can be used itself and also used in an electrical tube, bulb, chemical, package, medication and laboratory.
Characteristics Description

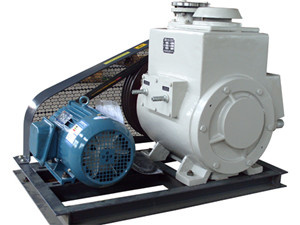

2X series Rotary vane Vacuum pumps are an improved one. The pumps are basic equipment to take gas out of hermetic case.
1. The pumps can work continuously under the condition of 5-40 temp and bear pressure< 1330 PA.
2. The equipment gas ballast valve can take out a small quantity of water vapor.
3. Neon light making, special & Vacuum pump.
Parameters/Model |
2X-4A |
2X-8A |
2X-15A |
2X-30A |
2X-70A |
|
Pumping speed(L/s) |
4 |
8 |
15 |
30 |
70 |
|
Ultimate pressure(Pa) |
6× 10¯ ² |
6× 10¯ ² |
6× 10¯ ² |
6× 10¯ ² |
6× 10¯ ² |
|
Rotary speed(r/min) |
450 |
320 |
320 |
450 |
420 |
|
Motor power(Kw) |
0.55 |
1.1 |
2.2 |
3 |
5.5 |
|
Working voltage(v) |
380 |
380 |
380 |
380 |
380 |
|
Cooling Mode |
Natural cooling |
Water cooling |
Inlet
Diam(mm) |
I. D. |
25 |
40 |
50 |
65 |
80 |
|
O. D. |
30 |
50 |
80 |
85 |
100 |
Dimensions(mm) |
Length |
540 |
790 |
790 |
810 |
910 |
|
Width |
335 |
430 |
530 |
480 |
650 |
|
Height |
380 |
540 |
540 |
560 |
700 |
|
Weight(kg) |
55 |
158 |
202 |
260 |
333 |
Taizhou Ranri Import&Export Co., Ltd. is a full service vacuum engineering and sales including vacuum pumps, vacuum valve, vacuum system, vacuum element. For the long term we are trying to build our brand image --EVP.
EVP is committed to offering customer-madevacuum solutions, consulting, planning, designing, building, operating, installing, debugging. We have the professional engineering team according to the different customers. Our products have long operation life, stable and reliable quality, high vacuum, duly shipment, completed sizes to meet requirements of different customers from different markets, such as U. S. A, Canada, Italy and Norway etc.
Now, we've gained CE Certificate, manage our production under ISO9000: 2000 system, and we have actively invested in research and development of all our products. Based on firm performance and stable quality, we enthusiastically provide sincere and prompt service to our customers and establish sustainable business operation, environmental and lower energy consumption. Be designed by the experienced technicians with more than 20 years and 100% Factory inspection, we are responsible with any problems of the products' quality and provide the tracking service of shipment. And the feedback in 12 hours with the customer's opinions will be tackled within 24 hours.
