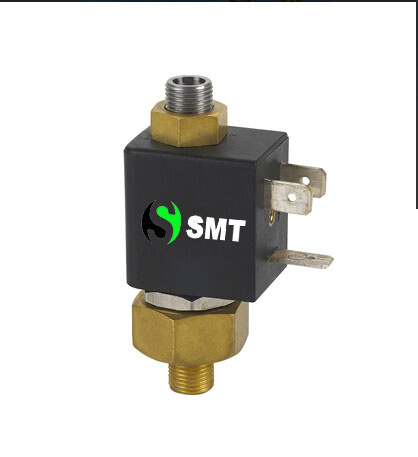

RSK miniature normally open solenoid valve G1 / 8 "Details:
Technical parameters:
Suitable medium: Water, air, oil
Medium temperature: -10 ~ 130 º C
Action: Direct-acting
Working pressure: 0 ~ 14kgf / cm2
Body material: Brass (forging)
Seal material: EPDM rubber EPDM
Coil protection factor: IP65 plastic coil
G threaded connection: 1/8 "
Flow Aperture: 1.5mm
CV values: 0.09
Voltage: 220VAC / 50HZ 10VA; DC24 V: 7 W; Fluctuate ± 10%, other voltages can be customized.
| Model | Thread G | Orifice | Cv value | Length | High | Working Temperature | Working Pressure | Rated voltage |
| mm | mm | mm | kgf/cm 2 |
| RSK | 1/8" | 1.5 | 0.09 | 26 | 66 | -10 ~ 130 | 0 ~ 14 | AC:10VA
DC:7W |
