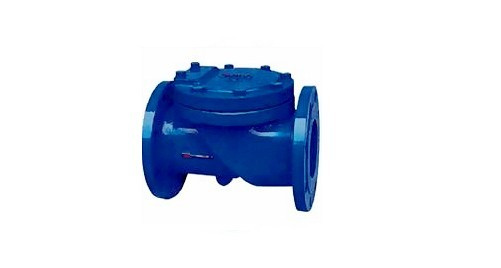

Rubber Disc Check Valve
Price: |
US $ 10-500/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Piece |
Pay Type: |
T/T |
Technical Specifications of Rubber Disc Check Valve
1. Descriptions: Rubber Disc Check Valve
2. Materials: Cast Iron
3. Features:
Rubber disc check valve consists of body, cover and rubber disc. Inside of the rubber disc is steel plate, steel bar and reinforced nylon liner and the outside is rubber and the disc life is more than one million open-close cycles. The valve is designed with unimpeded bore, so the pressure loss is very little and no sundries pile up in the body and it is easy to maintain this kind of valve.
The valve is used for feeding system and installed at the outlet of the pump to prevent the fluid flowing backward and water hammering. Also it can be installed at the inlet ofinlet/outlet's bypass pipe to prevent the water in the cistern flowing backward into the pipe.
4. Related Standard:
Inspection and Test: API598.
5. Specifications:
A. Nominal Pressure: 1.0-1.6Mpa
B. Nominal Diameter: 50-600mm
C. Medium: Water and weak corrosive fluid
D. Working Temperature: 0ºC-80ºC
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Function: |
Ddcv Double Lobe |
Material: |
Cast Iron |
Structure: |
Swing |
Connection Form: |
Flange |
Kairuite Valve Co., Ltd., is a leading company in valve design, manufacturing and sales. It is located in the beautiful seashore city, Rui'an. Kairuite is specialized in producing small size forged valve, gate valve, globe valve, check valve, ball valve and butterfly valve which applied to Oil field, Petrochemical, Refinery, Power Station, Ship, Water treatment and Natural gas field. We've passed the API6D, CE / PED, ISO9001: 2008, ISO14001: 2004, TS certificates
Foundation:
1984 Zhejiang JinLong Petrochemical Machinery Factory
2003 Zhejiang Kairuite Valve Co., Ltd
2009 Have second production base
Employee: 126 persons
Certificates:
API 6D certificate, CE certificate, ISO 9001 certificate, ISO14001 certificate, TS certificate
Products:
Small size forged valves, gate valves, globe valves, check valves, ball valves, butterfly valves
Standards:
API6D, DIN, ASME, GB
Customer speed:
Middle East, North America, Europe
Domestic main customers:
Liaohe oilfield, Jilin oilfield, North China Oilfield, Qinghai oilfield, ChangQing Oilfield, DaQing oilfield, Shengli oilfield, Xinjiang oilfield, Urumchi Petrochemical, Karamay Petrochemical, Tarim oilfield, Harbin oilfield etc.
