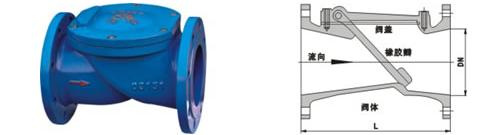

Rubber Flange Check Valve
| Price: |
Negotiable |
| Trade Terms: |
by sea or air |
| Min Order: |
5 |
Rubber Flange Check valve
1 - Body to Cover Joint designed to apply a uniform load to the gasket to assure a leak proof seal. Seat Rings are seal welded to provide a bubble tight joint.
Rubber Flange Check valve
2 - Disc to Hanger connection allows the disc a controlled movement independent of the hanger to assure proper disc alignment with the seat at closure.
Rubber Flange Check valve
3 - The connection is secured by a welded disc nut to prevent disassembly due to vibration and closure impact.
4 - Stellited Seat Ring provides increased resistance to wear abrasion and erosion of the sealing surface.
Check Valve Series
A check valve allows fluid to flow through it in only one direction. Check valves are two-port valves, meaning they have two openings in the body, one for fluid to enter and the other for fluid to leave. There are various types of check valves used in a wide variety of applications. Although they are available in a wide range of sizes and costs, check valves generally are very small, simple, and/or cheap. Check valves work automatically and most are not controlled by a person or any external control; Accordingly, most do not have any valve handle or stem.
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Structure: |
Swing |
| Connection Form: |
Flange |
| Material: |
Carbon steel |
Shanghai Shangzhou Valve Manufacture Co., Ltd., established in 2001, covers an area of 23, 800 m and owns 8, 570 m² Of building areas. The company is located in Fengxian District of Shanghai, just 8 km away from the golden beach of Fengxian Bay Tourist Resort. It is a specialized manufacturer and supplier which integrates design, development, manufacturing, sales and after-sales service.
Our company always keep improving our key technology, innovating the ideas and strengthening internal management, which help enterprise to develop and grow steadily. Our company also holds technical centers and quality inspection center, all the products designed and manufactured strictly conform to the National Standards or the International Standards. In addition, we supervise the whole process seriously: From purchasing the raw materials to the final shipping.
We effect the policy of "quality first, user foremost, excellence in details, making more efforts", so as to provide customers with better solutions! Meanwhile, our company admitted by ISO9001: 2000 quality management system and has passed the AZ certification which is used for the special equipments of pressure pipes.
All our products can be made under different standards such as: GB, API, DIN, JIS, etc. Main products include gate valves, globe valves, ball valves, butterfly valves, plunger valves, check valves, leakproof valves and other special industrial valves. Patented products include leakproof valve (Patent No. 02232995.1), leakproof globe valve (Patent No. 01227164.0), leakproof gate valve (Patent No. 200820055101.9), no return ball valve (Patent No. 02235459. X) and soft-sealing thin gate valve (Patent No. 200820055102.3). As for the materials of valve body, there are carbon steel, alloy steel, stainless steel, ultralow carbon stainless steel, and etc. The valve pressure rating ranges from PN1Mpa. To 57 Mpa. (American standard pressure rating ranges from 150 LB to 3, 500 LB); The nominal diameter ranges from DN10mm to DN2000mm (American standard specification ranges from 1/2" to 36"); And the applicable operating temperature is from -196C to 780C. Our Company's valve products are widely used in industries such as petroleum, fuel gas, electric power, chemical engineering and metallurgical industry.
Shangzhou has been in an unprecedented new stage of development. The products are more and more popular due to the perfect performance, high quality, reasonable price, good customer service and efficient brand operation. We sincerely expect your further support and trust. Looking forward to working with you and creating a prosperous future together! ²
