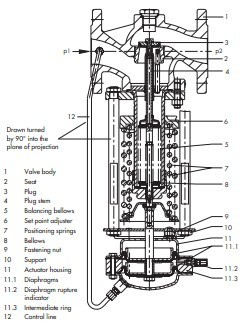

Design and principle ofOperationThe excess pressure valve consists of aSpring-loaded globe valve with a balancedPlug and an actuator with an operating dia-phragm and a safety diaphragm. The excess pressure valve is used to maintainThe pressure upstream of the valve to an ad -justed set point value. The valve opens whenThe upstream pressure rises. The process medium flows through the valveBetween the seat (2) and the plug (3) in the di-rection indicated by the arrow. The positionOf the valve plug determines the flow rate. TheUpstream pressure p 1 is transmitted via theControl line (12) to the operating diaphragm(11.1) and is converted into a positioningForce which is used to move the valve plug, Opposing the force of the positioning springs(7). The spring force is adjustable at the setPoint adjuster (6). The regulator has two diaphragms (11.1) op-erating independently from one another. Continued operation is possible even shouldOne diaphragm fail. To recognize a rupturedDiaphragm, a diaphragm rupture indicatorOr optionally a pressure switch to signalize aRupture is installed in the intermediate ring(11.3 ). Typetestng: The regulator has been typetested as a safetyExcess pressure valve (SEV) by the GermanTechnical Inspectorate (TÜ V) according toAGFW specifications. The test mark is available on request. 2 EB 2546-2 ENDesign and principle of operation
