Safety Overflow Valve (AY42H-160)

Safety Overflow Valve (AY42H-160)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
AY42H, TA802Y type safety overflow valves are to be applied to pipelines in high-pressure pump stations to provide over pressure protection
Type Nominal pressure
(MPa)
Opening pressure Working temperature Suitable medium
AY42H-160
TA802Y-160
16.0 6.3~16.0 200 Water, Oil etc.
AY42H-250
TA802Y-250
25.0 10.0~25.0
AY42H-400
TA802Y-400
TA802Y-600
40.0-60.0 20.0~60.0

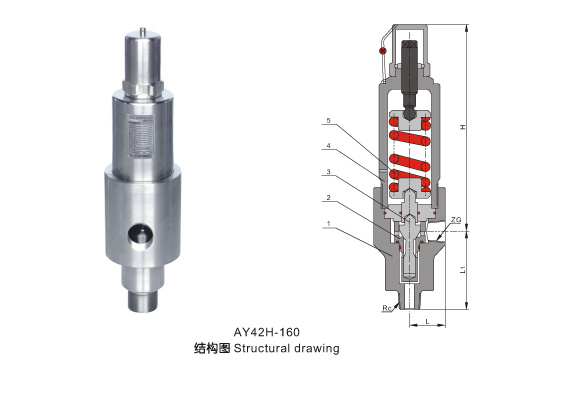

 Explanation of materials for main parts
NO. Name of part Materials
1   Body   Carbon steel
2   Seat   Stainless steel
3   Disc Stainless steel
4   Bonnet Welding
5   Spring 50CrVA


 Dimensions (mm)
Type Nominal diameter
DN(mm)
   Dimensions
D D 1 K M Z- d b L L 1 Rc H
AY42H-160
AY42H-250
AY42H-400
15 135 95 25 M48      2 4-22 25 65 140 1" 329
20 165 115 30 M52      2 6-26 28 80 150 1  1 / "
2
447
25 200 145 38 M80      3 6-29 40 90 180 2" 485
32 225 170 42 M100      3 6-33 50 100 200 2  1 / "
2
570


 Dimensions (mm)
Type Nominal diameter
DN(mm)
   Dimensions
Rc ZG L L 1 H
TA802Y-600 15 1/2" 1/2" 52 90 250
25 1" 1" 52 113 275
40 1 1/2" 1 1/2" 52 157 336
Prod Model: AY42H-160
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Spring Type
