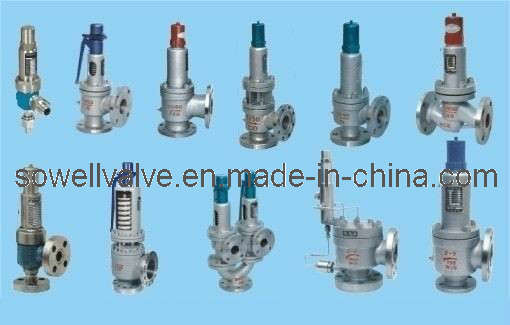

Safety Valves are designed and manufactured to meet the requirement of all a variety of applications as per API 526 and API 520. The full nozzle has the eliminating distortion of the seating surface, as body strain is not transmitted The Nozzle is made from a corrosion resistance stainless Steel material, When closed position, the fluid does not come in contact with the valve Body an therefore only subject to the outlet pressure which is very much lower pressure.
|
Valve Size |
Orifice Code |
Orifice Diameter (MM) |
Dimensions |
|
A |
B |
C |
|
25 x 50 |
D |
9.5 |
105.0 |
114.5 |
440 |
|
25 x 50 |
E |
12.5 |
105.0 |
114.5 |
440 |
|
25 x 50 |
G |
23.0 |
105.0 |
114.5 |
440 |
|
40 x 50 |
F |
16.0 |
124.0 |
120.5 |
500 |
|
40 x 65 |
G |
23.0 |
124.0 |
120.5 |
500 |
|
40 x 80 |
H |
28.0 |
130.0 |
124.0 |
525 |
|
40 x 80 |
J |
31.5 |
130.0 |
124.0 |
575 |
|
50 x 80 |
H |
28.0 |
133.0 |
124.0 |
525 |
|
50 x 80 |
J |
32.5 |
133.0 |
124.0 |
575 |
|
50 x 80 |
K |
36.5 |
133.0 |
124.0 |
575 |
|
65 x 100 |
J |
32.5 |
136.0 |
143.0 |
600 |
|
80 x 100 |
K |
42.5 |
155.0 |
162.0 |
615 |
|
80 x 100 |
L |
50.0 |
155.0 |
162.0 |
615 |
|
80 x 100 |
M |
56.0 |
155.0 |
162.0 |
615 |
|
100 x 150 |
P |
72.5 |
181.0 |
229.0 |
890 |
|
100 x 150 |
Q |
95.5 |
181.0 |
229.0 |
890 |
|
150 x 200 |
Q |
95.5 |
240.0 |
241.0 |
1150 |
|
150 x 200 |
R |
115.0 |
240.0 |
241.0 |
1150 |
|
