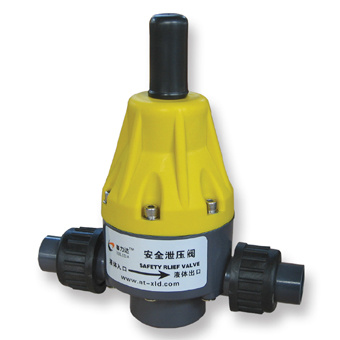

Safety valve function specifications:
Caliber DN15mm, DN20mm, DN25mm, DN40mm
Max. Work pressure 1.0Mpa
Setting range: Safety valve is 0.1-1.0Mpa
Safe operation, long life, high quality and reliable materials, responsive, good reproducibility, compact size, open the valve fully with little pressure fluctuations, pressure regulator without any vibration, pressure setting at any time, including during the work.
PTFE+rubber compound diaphragm seal is reliable without leakage.
Connector Type: A. Adapting form(cement or sweating soldering); B. Flange form.
Diaphragm, spool valve to withstand the internal spring pressed to sit inside the pipe, when the system pressure exceeds pre-set pressure, the diaphragm and the valve was the top, the media and containers escape to the drain tube at the scene by adjusting the screw in the range of 0-1.0Mpa set pressure, discharge pressure is generally set higher than the system pressure 0.1-0.2Mpa, usually as close as possible to install the exit of the pump, there should be no valve between the pump and relief valve.
Nantong Xilida Fluid Control Equipment Co., Ltd. is a professional manufacturer of metering pumps together with research, production and sales. The main products are mechanical diaphragm metering pumps, piston metering pumps, hydraulic diaphragm metering pumps, solenoid diaphragm metering pumps, plusdrug pump, back pressure valves, safety valves, mixers and dosing equipment sets. Products are widely used in the proportion of quantitative dosing on industrial and mining enterprises, urban environmental protection, petrochemical, food, industrial water treatment and pure water, additives, pharmaceutical and so on. Our products according to the GB|7782-1996 standards combine the latest and advanced technique production, the function already reaches international advanced level. A good public praise in this area is our harvest.
Ten years' continuing innovation on technic and management since founded, we step into a good cycle of quantitative business road, owning a professional design and technical development team. A set of management system together with production, quality and marketing has formed. Strong technical force, advanced technology and equipment are our advantages. Two-dimensional CAD design, SolidWorks three-dimensional design software and other advanced design tools bring on product quality reaching the level of international counterparts. " Build brand with good faith and ability, pursuit of perfection with innovative and aggressive" as quality policy, "not the best, but better" as work sense. A complete quality management system has been established within our enterprise. Our company established an extensive sales and service network all over the country: Sales offices in Beijing, Shanghai, Guangzhou, Jinan, Yixing, Xi'an, Wuhan, Shenyang, Chengdu and so on, and several agents could provide customers with prompt and satisfied service. Export has been 20% of total sales. With the steady improvement of product quality and gradually expand the scale of production, Xilida brand has established a good business reputation in the market, getting the wonderful evaluate from both native and foreign customers.
