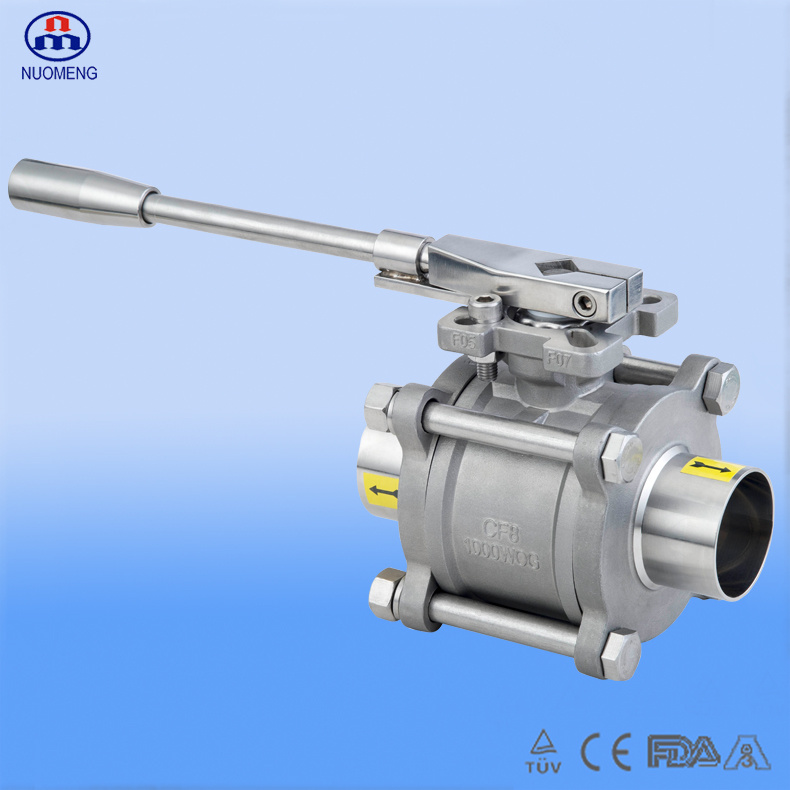

Product Name: Sanitary Stainless Steel Three Piece Welded Manual Ball Valve
Application:
This type valve series is manually, it used to control the material transfer, which is widely used in food, beverage, pharmaceutical and chemical industrial piping system, to regulate and control the medium flow in the system.
Working principle:
This kind of valve can be operated through actuator (90 degree rotary handle), its actuator or manually with the hand is to revolve the axial movement unto 90degree, so the valve can open or close. The actuator have three type.
Multi-position handle can use to 15 degree adjustment of valve there is 12seat to lock open or close, In that way, the valve can control the flow.
Pulling handle can use to the 4 multi-function to lock open or close. In that way, the valve can control the flow.
Material: Steel parts: 304 stainless steel, stainless steel 316L
Seal: VMQ, FPM, EPDM, PTFE
Standard design: 3A. Our company offers other standard, such as DIN, SMS, ISO/IDF, RS/RJT, ASME/BPE, ETC.
The parts of valve usually include: Valve body which divided into two parts, the ball with through cavity, valve stem and control sets(handle/actuator)etc.
Connection: Weld, Our company also offers clamp, weld/clamp, etc.

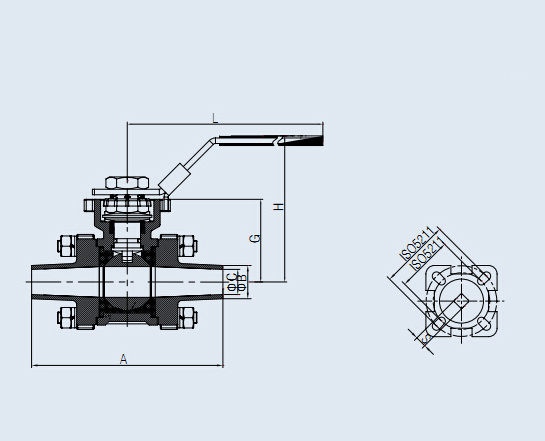

| 3A-NO.RQ2102 | Size | Length | outer diameter | inner diameter | G | H | L | ISO5211 | S | N.m |
| 1/2" | 93 | 12.7 | 9.4 | 40.3 | 71 | 130 | F03 PCD36 6X4
F04 PCD42 6X4 | 9 | 5.5 |
| 3/4" | 103.5 | 19.05 | 15.75 | 42.3 | 73 | 130 | F03 PCD36 6X4
F04 PCD42 6X4 | 9 | 5.5 |
| 1" | 110 | 25.4 | 22.1 | 53.4 | 91.6 | 165 | F04 PCD42 6X4
F05 PCD50 7X4 | 11 | 11.8 |
| 1 1/4" | 120 | 31.8 | 28.5 | 58.4 | 96.6 | 165 | F04 PCD42 6X4
F05 PCD50 7X4 | 11 | 14.2 |
| 1 1/2" | 129 | 38.1 | 34.8 | 70.8 | 104 | 190 | F05 PCD50 7X4
F07 PCD70 9X4 | 14 | 19.0 |
| 2" | 145 | 50.8 | 47.5 | 77.8 | 110 | 190 | F05 PCD50 7X4
F07 PCD70 9X4 | 14 | 23.7 |
