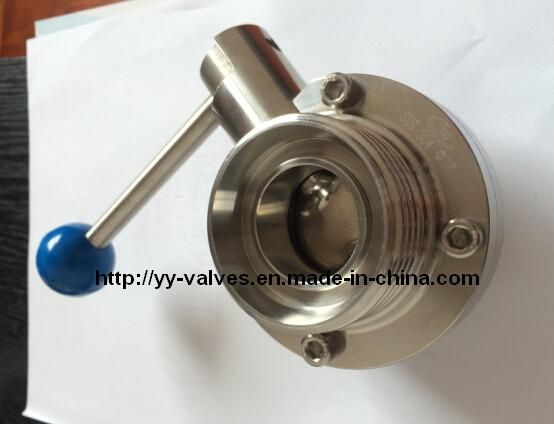

Sanitary butterfly valve with DIN thread connections
1)Material: SS304 , SS316L
2)Size: DN25-DN100
3)Standard of valve: DIN Thread
4)Material of seal: Silicone/EPDM/FPM FDA117.2600
5)Connection mode: Thread connection
6)Certification: Material inspection report
7)Power: Pulling handle/multi-position plastic handle/multi-position stainless steel handle/electric actuator/pneumatic head
8)Work principle: This kind of valve can be handled by manual or an electric actuator, and also can be handled by a pneumatic actuator.
9)Medium: Food, beverage, dairy, pharmacy.
10)certification: Metallurgical tests&pressure tests.
As a manufacturer, We can customize and design according to the customer's requirement if the specification is out of our standard.
Don't hesitate to contact us if you need more details or catalogue.
CE Certificate can be provided.
| Size | Thread | Diameter Inside |
| DN25 | RD52 ×1/6 | 26mm |
| DN32 | RD58 ×1/6 | 32mm |
| DN40 | RD65 ×1/6 | 38mm |
| DN50 | RD78 ×1/6 | 50mm |
| DN65 | RD95 ×1/6 | 66mm |
| DN80 | RD110 ×1/4 | 81mm |
| DN100 | RD130 ×1/4 | 97.6mm |
| DN104 | RD130 ×1/4 | 100mm |
Wenzhou Yuanyu Mechanical Co., Ltd. is the professional manufacturer that producing high-precision sanitary valves, pipe- fittings and fluid equipment. Such as stainless steel sanitary butterfly valve, check valve, diaphragm valve, ball valve, plug valve, pipe-fittings(elbow, tee, ferrule, clamp), stainer, cleaning ball, sanitary pump, and so on.
The products are widely applied in dairy, beer, food, Pharmaceutical, beverage, cosmetics and chemical industry etc areas.
All our products are made from stainless steel 304, 316L And by CNC machine, strictly according to DIN, SMS, ISO, IDF, 3A RJT, DS, BS, BPE industrial standard request.
Great quality and more than ten year experience get many domestic customers' Recognition. We have been supplier of Snowflake beer and Panda group for more than 5 years.
We have exported our products in the international market for 8 years.
In order to meet the demand of expanding market constantly and satisfy the requirements of customers"high quality, low price", yuanyu promotes its quality constantly based on the advanced management system, first-class quality and service, making "yuanyu"become a satisfactory cooperation partner domestically and internationally.
