The sanitary valves can be mainly used in dairy, beverage, food, pharmaceutical. If you want to know the detailed usage of every kind of valve, pls do not contact me soon.
Our sanitary valves can be operated by manual or pneumatic. We can prodive the drawing for your confirmation before producing.

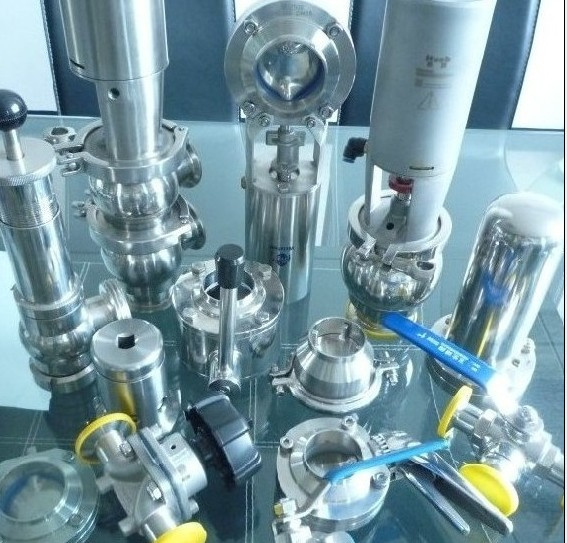

Our sanitary valves include:
- sanitary ball valve
- sanitary butterfly valve
- sanitary safety valve
- sanitary non-return valve
- sanitary check valve
- sanitary anti- vacuum valve
- sanitary pressure relief valve
- sanitary diaphragm valve
- sanitary sampling valve
- sanitary divert valve
- sanitary reversing valve.
Specification
Size: Dn25 - dn150&1'' - 6''
Material:
Valve: Product wetted steel parts: Ss304 (1.4301),
Ss316L (1.4404)
Other steel parts: Ss304 (1.4301)
Actuator:
Body: Ss304 (1.4301)
Piston: Light alloy (for ø 85 mm: Bronze).
Air/air version
Seal: NBR
Housing for switches: Ppo
Valve seal: EPDM/PTFE/silicone
All seal material comply with FDA 177.2600
Connection: Clamp, welded, flange and threaded
Standard: DIN, SMS, 3A
Technical data.
Valve:
Working pressure: 0 - 10bar,
Temperature range: -10 - 95deg.
Working temperature rating: -20 to 135deg (EPDM)
Sterilization temperature: 150deg. (max20min. )
Actuator:
Control air pressure: 5 - 8 bar, temperature range: -25° C to +90° C
Air consumption (litres free air) - ø 85mm: 0.24 x p (bar)/ ø 133 mm: 0.95 x p (bar)
Weight: ø 85 mm: 3 kg/ ø 133 mm: 12 kg
Surface treatment:
Internal surface: Ra0.8Μ M
External surface: Ra1.6Μ M.
Weizhou Light Industry Machinery Co., Ltd., established in the year of 1983, is specialized in designing and producing many kinds of sanitary valves, pipe fittings and tank top assemblies widely used in dairy, food & beverage, wine and pharmaceutical.
Our prices are very competitive because we are manufacturer, the source. Moreover, our products have passed the certification of ISO9001 and FDA and standard as SMS/3A/DIN/ISO. Our products can definitely meet the requirments of European quality and win highly praise from our UK, Japan, Norway and Italy's customer with high quality.
Welcome to your inquiry.
