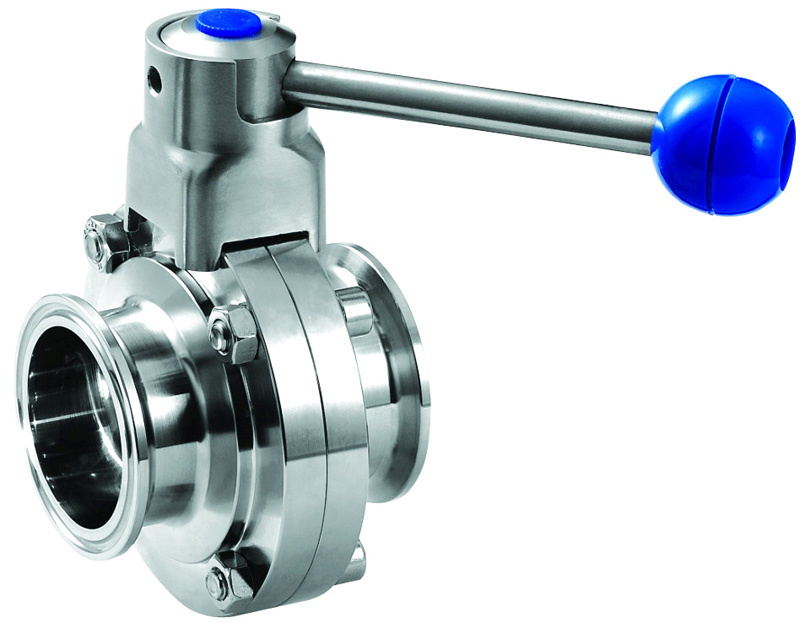

Commodity: Sanitary Butterfly Valve
Norms: 3A / DIN / SMS/RJT
Connection: Threaded / Clamped / Welded
Handles type: Pulling Handle, Multi-position Plastic / Stainless Steel handle
Material: 304 / 316L
Seal: 1. Standard: EPDM
2. Options: PTFE / FPM / Silicone Rubber / NBR
Size: 1" - 4", DN25 - DN100
Working Pressure Range: 1Mpa - 1.6Mpap
Operating Temperature Range: -20 degree +135 degree (According to EPDM)
Sterilizing Temperature: 150 degree (MAX 20min)
Surface Treatment: Inside <=0.8μ M, Outside<=1.6μ M
|
DIN Clamp Butterfly Valve |
|
DIN |
D1 |
D2 |
A |
H |
L |
|
DN25 |
25 |
50.5 |
126 |
76 |
66 |
|
DN32 |
31 |
50.5 |
126 |
80 |
66 |
|
DN40 |
37 |
50.5 |
126 |
82 |
70 |
|
DN50 |
49 |
64 |
126 |
89 |
76 |
|
DN65 |
66 |
91 |
155 |
99 |
80 |
|
DN80 |
81 |
106 |
155 |
106 |
80 |
|
DN100 |
100 |
119 |
155 |
115 |
84 |
|
DN125 |
125 |
155 |
195 |
130 |
95/116 |
|
DN150 |
150 |
183 |
195 |
143 |
99/120 |
Wenzhou Zhibo Mechanical Technology Co., Ltd is a manufacturer specializing in SS 304/316L High-Precision sanitary fittings and valves, such as Elbow\Ferrule\Union\End Cap\and Butterfly valve etc., which collects research, development, production and after sales service together.
ZhiBo always focuses on high quality, implemented ISO9001: 2008 and introduced the most advanced equipments MAZAK CNC. All of our products are strictly designed and manufactured according to international standards. Such as 3A\SMS\DIN\BS\BPE\RJT\ISO/IDF.
The raw material of 304/316L used in the former must be tested. And each finished product will be inspected by advanced quality inspection equipment to check whether is qualified before delivery. Even if there is a small sand hole on goods, it'll be picked out and rework.
At present, With a very strict quality requirements, some of customers are from South Korea, Japan and America have cooperated with us for over 3 years and orders amounts about USD 1-2.5 million every year.
When you find us, I firmly believe that it's the beginning of establishing a long-term win-win relationship of friendly and cooperation as long as a sample.
