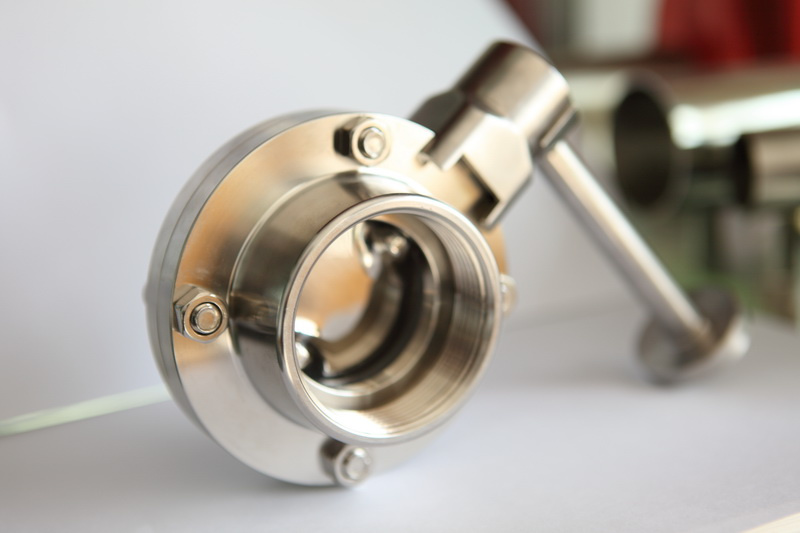

Sanitary butterfly valve suitable for sanitary fluid pipeline flow control.
Material: 304/316L(1.4301, 14404)
Size: DN15-DN150
Standard: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
Multi-position handles can be used for valves up to DN100 / 4"; Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
Manual handle, pneumatic actuator and electric actuator are interchangeable.
Max. Pressure: 10bar (145psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150
Temperature range: 14 ~ 248° F (-10 ~ 120° C), EPDM
End connections: Butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
Surface treatment: Ra 16 ~ 32µ In (0.4 ~ 0.8µ M)
Supply pressure for air actuator: 70 ~ 115psi
Useage: Beverage, Bio-Pharm, Cosmetic, Dairy, Food, Wine, Nutritional, Pharmaceutical
