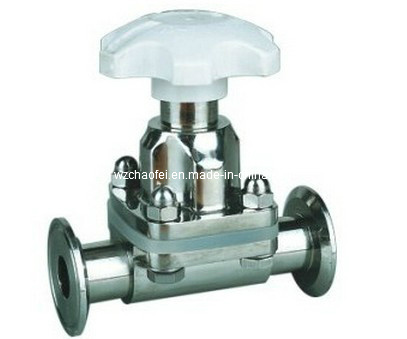

Sanitary Diaphragm Valve
Diaphragm valves, manually or penumatically operated, are especifically desighed for ues on hygienic and aseptic processes in the pharmaceutical industries, The valve is excellent for flow control aswell for open/close duties.
1)Body material: SS304 OR SS 316L
2)Max pressure: 10bar
3)Working temperature: -10 ~+120 degree(EPDM)-14~+248degree)
4)Standard: DIN, SMS IDF ISO 3A BPE
5)Connection: Clamped, welded, THREAD
6)Body construction: STRAIGHT, Three ways, U type
7)Size: DN10-50&1/4"-4",
8)Internal surface finish bright, Ra<= 0.5. Extenrnal surface finish satin/bright.
As a manufacturer, we can produce according to customer's requirement.
Please feel free to contact us if you want e-catalogue and drawing.
We are at your service any time.
Don't hesitate to contact us if you need more details.
For all products we can produce according to your requirement if your specification is out of our standard.
Standard |
3A, DIN, IDF, SMS etc. |
Size |
DN10-50& 1/4" -4" , |
Material |
SS304, SS316L |
Body/Disk |
Made by Forged material, fully precision machined by CNC machine. |
Gaskets |
Silicone, EPDM, Telfon, Nitrile etc. |
Connection |
Welding, clamp, thread and flange |
Handle |
Manual, 2/3/4-position pulling handle, multi-position plastic/stainless steel handle, 12 position gear handle. (can be produced by requirements) |
Surface Treatment |
180-420 Grit or unpolished |
Quality/Certificate |
ISO9001 |
Special product |
As per the requirements of customers |
Applications |
Food, dairy, beverage, beer, wine, pharmacy, biology and chemical industry. |
Other Choice |
Pneumatic valve and Electric valve (100% Tested /100% Inspected) |
Service |
Prompt quotation, competitive price, punctual delivery and guaranteed quality
|
Technical Data |
Material |
Contact with the product components |
Investment casting316L(1.4409) |
Can provide material inspection report |
Materal no contact with the product components |
304(1.4301) |
Sealing material |
Standard |
EPDM+PTFE |
Adopt sealing material with all the seal material the FDA 117.2600 |
Option |
EPDM |
Pressure |
Pressure of work |
16 bar |
Control air pressure |
5-8 bar |
Temperature |
Working temperature |
EPDM(-40 ~+130 degree), EPDM+PTFE(-5~+160degree) |
Surface treatment |
Inside surface treatment |
Ra≥0.4-0.8μm |
|
Surface treatment |
Sand blasket |
|
Connection |
The diameter welding |
DIN11850-2,DIN11850-1,3A,SMS,ISO,IDF,BS,BPE.... |
Connection mode: |
weld, triclamp,flange,wled socket,screw etc |
Body mode |
Straight ,T type, U type, L type,Multi type can be chosen |
Optional driven |
Brainpower |
Pneumatic control |
Pleastic actuator and stainless steel actuator |
Manual handle mode |
ABS or stainless steel handle |
