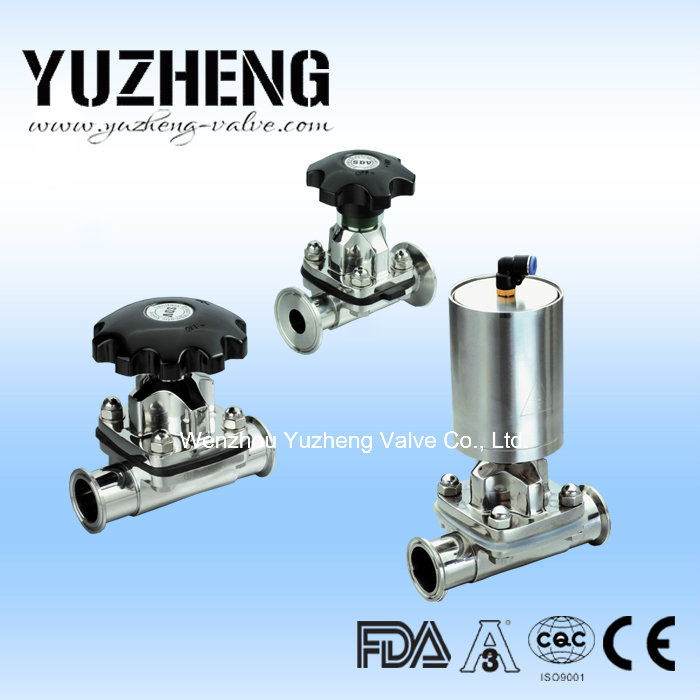

Sanitary diaphragm valve
1)Body material: Stainless steel 316L (investment casting)
2)Max pressure: 10bar (diaphragm is EPDM or FPM), 6bar (diaphragm is PTFE, one side shall be used))
3)Working temperature: EPDM(-40 ~+130 degree), EPDM+PTFE(-5~+160degree)
4)Standard: Standard: DIN11851, ASME BPE, 3A, SMS, ISO...
5)Connection: Clamped, welded, flanged can be chosen.
6)Material of seal: EPDM+PTFE FDA: 177.26600/
7)Size: DN12-DN50
8)Power: Pneumatic actuator(plastic/stainless steel actuator)/Handle
9)Driving way: Pneumatic, normally closed(1), normally open(2), and double direction(3)
10)Control pressure: 4-6 bar(control way 1), 3-4 bar(control way 2 and 3)
Work principle:
The diaphragm is close under normal state, and that moment the diaphragm clung to the valve body cavity, and closing off the flow path through the pipeline. When the diaphragm valve have the requirement to clean or open. The valve stem moves upwards according to the manual or pneumatic actuator equipment, spherical diaphragms naturally upwards, so that the valve is open and reach the requirement of clean and open. The diaphragm make the lower body cavity and the upper chamber separated from the valve cover, so that the stem at the top of the diaphragm, disc media and other parts from corrsion, eliminating the need for packing structure, and no media leaks, the optimize valve body made the cleaning liquid flow out totally, so that don't have any entrapment.
As a manufacturer, we can produce according to customer's requirement.
Please feel free to contact us, We are at your service any time.
