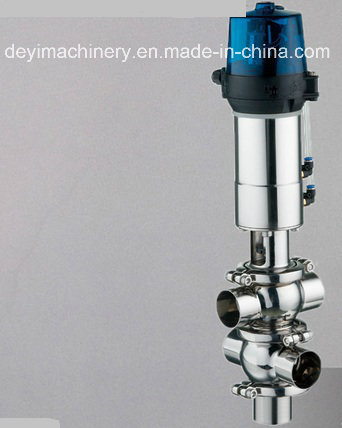

Sanitary Hygienic Pneumatic Double Seat Position Valve (DY-V042)
| Price: |
US $ 80-100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Name
Sanitary hygienic pneumatic double seat position valve(DY-V042) Applications
Sanitary reversing valve has very flexible design which meets sanitary requirements, and is mainly used in pipeline systems without contaminant or mixture. As a modern and widely used valve, it is mainly used in the wine brewing, dairy, beverage, and pharmaceutical industries.Operating PrincipleSanitary reversing valve is remotely operated by means of compressed air or manual. By controlling the relative position of valve plug, it makes the valve open or closed (shut-off type), or changes the flow direction of media.Sanitary reversing valve can be installed with smart controller.Technical Specification| Size available | 1/2"~4",DN10~DN100 |
| Max. working pressure | 147psi (10bar) |
| Control air pressure | 70 ~ 116psi (5 ~ 8bar) |
| Working temperature range | EPDM:-20 ~ 135°C |
| Sterilization temperature | 150°C, Max. 20 min |
| Pneumatic connection | R1/8" (BSP) |
| Finish Surface | <32Ra (<0.8um); Other finishes available upon request. |
| End connections | butt welded,tri clamp,male and female |
| Standard | DIN, 3A, SMS, RJT, IDF or others upon request |
| Flow Medium Parts | 304,304L,316L (1.4301,1.4307,1.4404) |
Standard Design
- forged spherical body
- Compact design
- 360 degree orientation
- Mix-proof design, the bodies can be with different diameters.
- Over-pressure protection design preventing the pressure fluctuate to 30bar
- Easy disassembly
- Seat lift type and cavity spray type available
| Prod Model: |
DY-V042 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2"~4",Dn10~Dn100 |
| Connection Ends: |
Butt-Welded,Tri Clamp,Male and Female Threa |
| Actuator: |
Pneumatic Ss Actuatorelectric Actuator,Manual |
| Continuous Working Temperature: |
-20 ~ 135degree Celsius(EPDM) |
| Working Pressure: |
0~10bar (Standard) |
| Position Sensor: |
24V DC,NPN/PNP Position Sensor (2) |
| Flow Type: |
L,L/L,T/L,T,L/T,T/T |
| Flow Medium Parts: |
304,304L,316L (1.4301,1.4307,1.4404) |
| Connection Standard: |
DIN, 3A, SMS, Rjt, Idf |
| Export Markets: |
Global |
Wenzhou DeYi Machinery is a high-tech science and technology enterprise which integrates design, development, manufacture, installation and provides complete turnkey project. Specializing in the manufacture and sale of bio-pharmaceutical, food, dairy, beer and beverage engineering equipments and various sorts of pressure vessels and non-standard equipment to meet the needs of users, such as stainless steel tanks, Chinese medicine extractors, concentration and evaporation equipment, alcohol recovery equipment, online CIP cleaning equipment, stainless steel pipe, sheet, valves fitting and so on. We always pursue the goal of "excellence and innovation". We research and develop new processes and designs so as to comply with cGMP and FDA requirements.
"Quality first and customer first" is our tenet. Our goal is simply to furnish high quality products at competitive prices in the global market and delivering to meet the challenges required in the today's business environment. We sincerely welcome friends from around the world to cooperate with us to have a brilliant future.
Choose DeYi, will get better price, good service and profit!
