1.Product Name: Sanitary Pneumatic Angle Seat Valve
2.This angle seat valve is the new generation of pneumatic angle seat valve researched and developed by our company. It widely used in sanitary pipeline and chemical process, sterilization machine, disinfector, dryer, beer production and etc. ]
3.Performance and advantage:Visual position instruction, connect limit switch or emergency manual device.
4.Easy installation, air controller can rotate by 360 degrees, and limit switch can rotate by 360 degrees. It can convenient install to one to two limit switches.
5.Advanced air actuator: thicken engineering plastic shell, safe and reliable; low wear piston, large capacity and low air consumption; self-lubricated internal components, maintenance-free.
6.Long-lived lead stem: valve stem with wedge PTFE sealing, avoiding dirt; Self-lubricated, maintenance-free; stem fixed perfect and can automatically correct location.
7.Advanced valve body: flow 30% bigger than general angle seat, smaller volume and better fluid flow pattern.

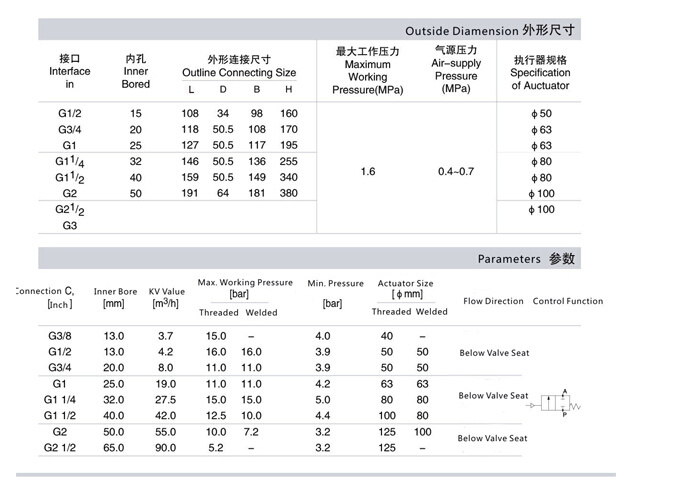

8.Technical Parameters
Working Pressure: 0-1.6MPa;
Working Temperature: -10ºC ~+200ºC;
Body Material: S.S.304/ 316
Sealing Material: PTFE, EPDM;
Air Pressure: 5-8bar;
Connection: female, clamped, flanged.
Zhejiang WanGuo Fluid Equipment Technology Co., Ltd. is located in the north of Longwan District, founded in 2008. Our company is a technologically-innovative enterprise that integrates development, design, production, sale and technical services.
WanGuo specializes in designing, producing and selling high-precision sanitary pumps, butterfly valves, spherical reversing valves, safety valves, mix-proof valves, sample valves, unions, tri-clamp unions, elbows, tees and all kinds of valves and pipeline connecters. They are widely used in food, beverage, pharmaceutical, bioengineering, water treatment, chemical and other industries.
WanGuo always focuses on high quality, and we have the most advanced OKUMA-BYJC and MAZAK CNC processing equipment, machining centers, milling centers and other automatic production equipment. All of our products are strictly designed and manufactured according to international standards, such as DIN, SMS, 3A, IDF, ISO and RJT. The quality meets the full requirements of GMP, ISO9001 and CE safety standards. Our products are well recognized by clients in Europe, South America, North America, Southeast Asia, the Middle East and our country.
Honestly, quality and development are what we pursue forever. WanGuo people always perfectly combine the high-quality materials, sophisticated designs, strict manufacture process with a quality assurance system, and try our best to offer the best and high-quality products to our customers.
