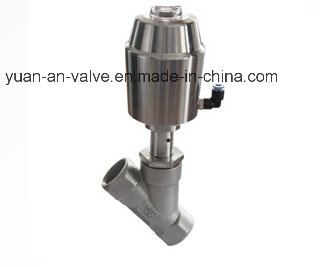

Sanitary pneumatic angle seat valve
Technical parametersModel : YAJ-A
Size: DN15-DN65, 3/4"-3"
Medium: Water, Liquor, Oil, Fuel, Saline solution, Alkaline, Organic solution, Steam
Viscosity: max.600mm2/s
Media range: -10 ºC~+180ºC with PTEE seal
Environment temperature
PA actuator temperature: -10ºC~+60ºC
PPS actuator
Actuator size40-80: +5ºC~+140ºC
Actuator size100-125:+5ºC~+90ºCMaterial
Actuator material: PA, PPS for option
Seal material: PTFE( NBR, FPM, EPDM for optional)
Filling seal: PTFE V-ring
Valve body material: Thread, Casted steel 316L
End Connection material: Stainless steel 316LStainless steel pneumatic actuator angle seat valves
Yuan'an Liquid Equipment Co., Ltd. Has been one of the professional high accuracy hydraulic-equipment manufacturers since 1999. Our name is remembered by many well-known enterprises, such as Shanghai Guangming, Uniliver, Guangzhou Daneng and Huiyuan Group. And also some yuan-an international competition companies
Yuan'an has set up two factories, including Shanghai Yuan'an and Zhejiang Yuan'an. There are five departments, including Sanitary steel tube department, Sanitary valve department, Sanitary pipe fitting department, Sanitary pump department, Sanitary steam valve department. Our products are widely used in dairy, beer, food, pharmacy, beverage, cosmetic, chemical industries and etc.
The pursuing of quality is endless in Yuan'an. We use first-class digital-controlled machines like CNC for production. Raw materials supply from Shanghai No. 5 Steel and Taiwan Walsin Lihwa Corp. All of our products are made according to industrial standards ISO, IDF, DIN and 3A. All product quality meets GMP requirements. At the beginning of 2003, Yuan'an stepped into international markets. Our automatic pneumatic butterfly valves, diaphragm valves and etc products have been exported to America, which fills the gap of sanitary hydro-equipment export in China. It also indicates that the product quality of Yuan'an has been recognized by the world market.
We provide equally outstanding after-sales services and competitive prices with our high quality products. And yuan'an is not only admitted by customers, but also attended by local & international competitors.
