Product Name

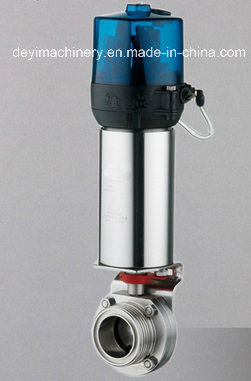

Sanitary Pneumatic Butterfly Valve with Control Cap(DY-V036)
Technical ParametersStandard | 3A,SMS,DIN,ISO,RJT,IDF |
Product wetted steel parts | AISI304/AISI316L | Provided with material inspection report |
Other steel parts | AISI304 |
Size | 1/2"~6",DN10~DN150 |
Seal material | EPDM/VMQ/FPM | All seals material comply with FDA21CFR117.2600 |
Working pressure | ≤10bar(145psi) |
Supply pressure for air actuator | 5~8(0~116psi) |
Working temperature | EPDM:-14~248ºF(-10~120ºC) |
VMQ:-58~356ºF(-50~180ºC) |
FPM:22~446ºF(-30~230ºC) |
Other materials are avaible upon request |
Sterilization temperature | 302ºF(150ºC,max 20min) |
Outside surface treatment | Ra16~32uin(o.4~0.8um) |
Inside surface treatment | Ra32~64uin(o.8~1.6um) |
Connetion ends | butt-weld,clamped ends,male ends, flange ends |
Pneumatic head | Normally closed(NC)-Air to open,spring to close |
Normally open(NO)-Air to close,spring to open |
Air to air(AA)-Air to open,air to close |
Options1.The seat and gasket can be NBR (Nitrile), VMQ (Silicone) or Viton (FPM) all complying with FDA 21CFR177.2600.2. End connection can be butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.3.Handle: 3-position pull handle; multi-position handle in either pure stainless steel or with plastic cover.4.Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.5.Control: position sensor, C-top controller, C-top controller (AS-I)Design Features1.Various standards can be provided: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.2.Available in sizes from DN25 / 1" to DN300 / 12"3.Multiposition handles can be used for valves up to DN100 / 4"; 4.Pull handles can be used for valves from DN25 / 1" to DN300 / 12"Manual handle, 5.pneumatic actuator and electric actuator are interchangeable.6.Seals comply with FDA 21CFR 177. 2600.7.The valve body can be customized with a wide selection of different connections.Our Service
On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
On After Sales | Free replacement if there is any quality problem |
On Delivery | Never delay delivery time |
On Materials | Ensure material pure |
Ensure material pure | Welcome |
Wenzhou DeYi Machinery is a high-tech science and technology enterprise which integrates design, development, manufacture, installation and provides complete turnkey project. Specializing in the manufacture and sale of bio-pharmaceutical, food, dairy, beer and beverage engineering equipments and various sorts of pressure vessels and non-standard equipment to meet the needs of users, such as stainless steel tanks, Chinese medicine extractors, concentration and evaporation equipment, alcohol recovery equipment, online CIP cleaning equipment, stainless steel pipe, sheet, valves fitting and so on. We always pursue the goal of "excellence and innovation". We research and develop new processes and designs so as to comply with cGMP and FDA requirements.
"Quality first and customer first" is our tenet. Our goal is simply to furnish high quality products at competitive prices in the global market and delivering to meet the challenges required in the today's business environment. We sincerely welcome friends from around the world to cooperate with us to have a brilliant future.
Choose DeYi, will get better price, good service and profit!
