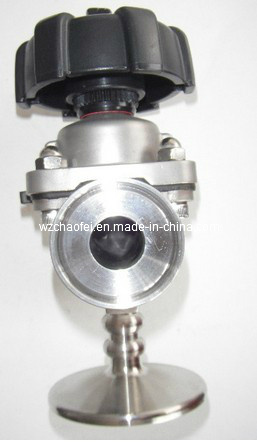

Product name: Sanitary stainless steel clamped diaphragm valve
1. Material: SS304 or316L
2. Size: DN15-50
3. Standard: SMS/3A/BPE/BS/DIN/ISO
4. Connection mode: Welded or clamped
5. Surface finishing: 180/240/320/400 grit
6. Application: Dairy, water, food, beer, beverage, pharmaceutical, cosmetic, chemical industry
7. Delivery detail: In15-35 days after recipt your deposit
8. Advantage: Quotation, competitive price, punctual delivery and guaranteed quality.
9. Seal: Silicone, EPDM, PTFE, PTFE+EPDM
We also supply sanitary butterfly valve, ball valve, check valve, diaphragm valve, reverding valve, sample valve, end cap, nut, pipe clamp-pipe holder, elbow, tee, cross, reducer, sight glass, cleaning ball etc.
Should any of the items be of interested to you, please do not hesitate to contact us, thanks.
Standard |
3A, DIN, IDF, SMS etc. |
Size |
DN15-50 , |
Material |
SS304, SS316L |
Body/Disk |
Made by Forged material, fully precision machined by CNC machine. |
Gaskets |
Silicone, EPDM, Telfon, Nitrile etc. |
Connection |
Welding, clamp, thread and flange |
Handle |
Manual, 2/3/4-position pulling handle, multi-position plastic/stainless steel handle, 12 position gear handle. (can be produced by requirements) |
Surface Treatment |
180-420 Grit or unpolished |
Quality/Certificate |
ISO9001 |
Special product |
As per the requirements of customers |
Applications |
Food, dairy, beverage, beer, wine, pharmacy, biology and chemical industry. |
Other Choice |
Pneumatic valve and Electric valve (100% Tested /100% Inspected) |
Service |
Prompt quotation, competitive price, punctual delivery and guaranteed quality
|
Technical Data |
Material |
Contact with the product components |
Investment casting316L(1.4409) |
Can provide material inspection report |
Materal no contact with the product components |
304(1.4301) |
Sealing material |
Standard |
EPDM+PTFE |
Adopt sealing material with all the seal material the FDA 117.2600 |
Option |
EPDM |
Pressure |
Pressure of work |
16 bar |
Control air pressure |
5-8 bar |
Temperature |
Working temperature |
EPDM(-40 ~+130 degree), EPDM+PTFE(-5~+160degree) |
Surface treatment |
Inside surface treatment |
Ra≥0.4-0.8μm |
|
Surface treatment |
Sand blasket |
|
Connection |
The diameter welding |
DIN11850-2,DIN11850-1,3A,SMS,ISO,IDF,BS,BPE.... |
Connection mode: |
weld, triclamp,flange,wled socket,screw etc |
Body mode |
Straight ,T type, U type, L type,Multi type can be chosen |
Optional driven |
Brainpower |
Pneumatic control |
Pleastic actuator and stainless steel actuator |
Manual handle mode |
ABS or stainless steel handle |
Chaofei Valve Pipe Fitting Co., Ltd. is a research and development, production, sales valve tube in one medium-sized enterprises, in accordance with DIN, SMS, ISO, IDF, 3A, RJT, DS, BS, BPE professional production of sanitary and other standards grade fittings, sanitary elbow, sanitary three links, the size of the first health level, health level rapid installation components, sanitary valves, sanitary pipe and so on. The company product range, specification variety, beautiful appearance, stable performance. Users can also request processing non-standard products. Products for the domestic and Southeast Asian countries and exported to Europe and the United States District, product quality, reliable, well received by customers and colleagues alike.
We are firmly believe that quality is the survival of this, the fundamental strength of competition to win, the company "no quality, how to win" for the purpose of exploration and innovation, but also to the general crash and commitment to quality and service users, will continue to develop new products into new areas, We do our best to provide high-quality fine modern industrial pipe fittings.
We strive for quality assurance of the premise, to provide the most favorable price. Welcome new and old customers to contact us to negotiate business, mutual benefit and mutual cooperation.
