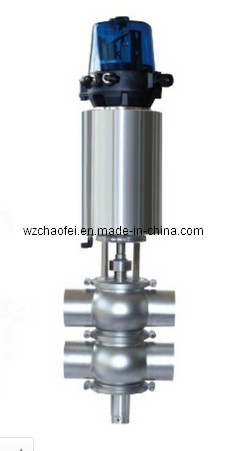

Desc: Stainless steel reversing valve / divert valve / flow diversion valve
1. Material
Contact with products part: AISI304, AISI304L, AISI306, AISI316L
Sealing material: EPDM, silicon carbide
2. Surface treatment
Outside surface treatment: Sandblasting Ra≤ 1.6um
Casting sub-light Ra≤ 0.6um
Inside surface treatment: Polishing Ra≤ 0.6um
3. Working principle:
Manual reversing valve is to converted the manual energy into merchanical energy, the merchanical energy will drive the stem axial movement, will move the locations of the sealing parts to contronl the switch, and ultimately the medium will reverse or stay stable.
4. Technology Characters:
The new type reversing valve, is with more security, clean, durability, with good appearance.
With open type braket, so the shaft sealing can be easily to check.
This design allows the valve rotating devices and products isolated to prevent heat from body to the start device.
The valve body with ball shape is with ideak mobility, easy to clean.
The treatment with material is more moderate
With standard valve design, so the connections is with high flexibility and diversity.
Rapid, fast assemble, mainatenance, operations.
5.Dimension:
DN25-100&1"-4", applied to the stainless steel pipeline system
|
Material |
SS304 SS316L |
|
Standard |
3A,DIN,IDF/ISO,SMS etc. |
|
Size |
DN25-100&1"-4" |
|
Warranty |
18 Months |
|
Polish |
Mirror polish,dull/matte polish,sub-light,240 girt,400 grit |
|
Packing |
Shrink wrapped-carton-pallet or in seaworthy wooden cased |
|
Shipping mode |
By sea,by air,by express |
|
OEM |
YES |
|
MOQ |
1 PCS/size |
|
Working Temperature |
-10~120 Degree |
|
Application |
dairy,food,beer,beverage,pharmacy,cosmetic and so on |
|
Service |
prompt quotation,competitive price,punctual delivery and guaranteed quality |
|
Special Design |
we can produce according to your drawings |
|
Sample Policy |
buyer bear the air fee, but this fee will be reduced from order directly. |
|
Delivery time |
usual 20 days around and can negotiate as per order qty |
|
Shipping port |
Ningbo, Shanghai |
|
Term of Payment |
30% TT deposit, the balance is paid before shipping the goods |
|
Package detail |
inner CTN, ourside ply-wooden case |
Chaofei Valve Pipe Fitting Co., Ltd. is a research and development, production, sales valve tube in one medium-sized enterprises, in accordance with DIN, SMS, ISO, IDF, 3A, RJT, DS, BS, BPE professional production of sanitary and other standards grade fittings, sanitary elbow, sanitary three links, the size of the first health level, health level rapid installation components, sanitary valves, sanitary pipe and so on. The company product range, specification variety, beautiful appearance, stable performance. Users can also request processing non-standard products. Products for the domestic and Southeast Asian countries and exported to Europe and the United States District, product quality, reliable, well received by customers and colleagues alike.
We are firmly believe that quality is the survival of this, the fundamental strength of competition to win, the company "no quality, how to win" for the purpose of exploration and innovation, but also to the general crash and commitment to quality and service users, will continue to develop new products into new areas, We do our best to provide high-quality fine modern industrial pipe fittings.
We strive for quality assurance of the premise, to provide the most favorable price. Welcome new and old customers to contact us to negotiate business, mutual benefit and mutual cooperation.
