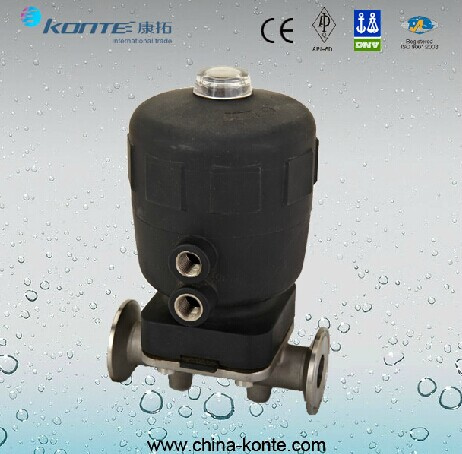

Sanitary Pneumatic Tri-Clamped Diaphragm Valve

Sanitary Pneumatic Tri-Clamped Diaphragm Valve
Price: US $ 10/Piece
Trade Terms: FOB,CIF,FCA
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Sanitary Pneumatic Tri-clamped Diaphragm Valve

Features

1. Electro and Mechanical Polishing
2. Sealing Material: PTFE, NBR, EPDM, FPM
3. Manufacture Standard: GB, DIN, ISO, SMS
4. Zero Leakage
5. Connection: Welding, Clamp
6. Tpye: Double-acting, Single-acting
Specifications
Inside and outside of body can be high-temperature sterilization

1). Nominal Diameter: DN15-50
2). Pressure Range: 0-16bar
3). Medium Temp: -20º C+150º C
4). Ambient Temp: -20º C+60º C
5). Diaphragm Material: EPDM, FPM, PTFE
6). Body Material: Stainless Steel
7). Body of Actuator: Aluminium Alloy
8). Connection: Tri-clamped, Welding, Flanged, Threaded
9). Driving Way: Pneumatic normally closed (1), normally open (2), double direction (3)
10). Useful: Pneumatic actuator D applied to pass body, Pneumatic actuator T applied to pass body and multiplass body
11). Max Pressure: 10 bar (diaphragm is EPDM or EPM), 6 bar (diaphragm is PTFE, one side shall be used)
12). Max Temperature: 150º C (according to the conditions of use)
13). Control Pressure: 4-6 bar (control way 1), 3-4 bar (control way 2 and 3)

Contact

Thanks for your visiting.

If you have any questions about our products or company, please do not hesitate to contact us.

Contact Person: Ada hu
Brand: KT/OEM
Applicable Media: Water, Oil, Gas, Nitric Acid, Acetic Acid
Certification: CE/API/DNV/FDA/ISO9001-2008
Sample Testing: One Sample for free( Under $10),Freight Collect
Packing: Plastic Bag, Carton & Plywood Case/According to customers' requirement.
Payment:  T/T, L/C, D/P, Western Union, Paypal
Port:  NINGBO/SHANGHAI, Customers' Request
Delivery Time: Within 35days after receiving T/T deposit Payment
Term of Delivery: FOB/CNF/CIF, Customers' Request


Prod Model: DV-002
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 3/8"-4"
Place Of Origin: China
Diaphragm Material: EPDM, FPM, PTFE
Driving Way: Pneumatic, Normally Closed, Normally Open
Valve Body Material: Ss304, Ss316
Pressure Range: 0-16bar
Connection Type: Welding, Clamp
Control Type: Single-Acting, Double-Acting
Material: Stainless Steel
Structure: Through Way Diaphragm Valve
Actuator: Pneumatic
Standard: JIS
Connection: Clamped Diaphragm Valve
Kangtuo International Trading Co., Ltd is not only a trading company but a combination of four factories whose products are complementary to each other. Konte deals with Pneumatic Actuator, Electric Actuator (Rotary and Multi-Turn), Ball Valve (Industrial and Sanitary), Butterfly Valve (Industrial and Sanitary), Pneumatic Angle Piston Valve, Diaphragm Valve, Gate Valve, Globe Valve, Check Valve, etc.

Konte makes full use of resources from the four factories, namely, Kangsaite, Homin, Yuanyu and Lianggong and has their technical, quality-control and price support. Established in 1978, Lianggong Valve Co., Ltd. Covers an area of 15000 square meters and produces pressure seat gate valve, globe valve, ball valve, control valves, butterfly valves, check valves, etc. Kangsaite Valve Co., Ltd. Specializes in pneumatic actuator, electric actuator, angle piston valve, diaphragm valve, etc. Yuanyu Machinery Co., Ltd. is professional manufacturer of high-precision sanitary valves & fittings and fluid equipment. Products are widely applied in dairy, beer, food, pharmaceutical, beverage, cosmetics and chemical industry areas. Homin Valve Co., Ltd. Covers an area of 16650 square meters and produces specially metal seated ball valves, floating ball valves, trunnion mounted ball valves and eccentric segmental ball valves which are widely applied to most severe and harsh conditions, such as high-temperature (up to 816º C), high-pressure (up to 15000psi), low-temperature(down to -196º º C), abrasive particulates (catalyst in mine and petro-chemical industry, PTO process, coal dusts and ashes).

With advanced management system and complete quality assurance system, we have got certificates such as CE, ISO, TS, FDA, API, DNV, etc.

We aim at providing one-stop service and offering professional guidance for clients all over the world. With the 4 factories as backup, we believe we will be your good choice for importing, selecting and assembling suitable valves for project, equipment, tender, etc.
