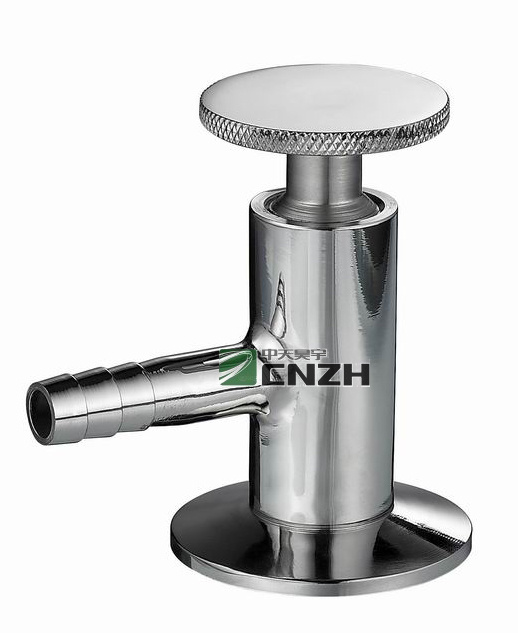

Sanitary sampling valve series
Performance and merit
1, in every sampling conducted before or after sterilized to prevent the secondary pollution
2, steam or alcohol can be used for in-suit sterilization (SIP)
3, diaphragm replaces the seal ring structure, no dead ends, more thorough sterilization
4, outfall increased so that dirt can be removed in time after the sterilization.
5, adjustable sampling can achieve a lot of sampling and micro-sampling
Technical parameters
Size: 1/4", 3/8", 1/2", 3/4"
Standard: DIN, SMS, 3A, ISO, IDF
Body materials: 304 304L
Seal material: PTFE, EPDM
Working pressure: < 1.0MPA
Sterilization: 120-135 deg c
Connection: Welded, threaded, clamped
Applications: Beer, dairy, beverage, pharmaceutical
