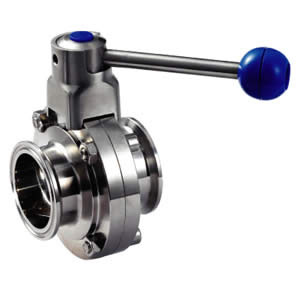

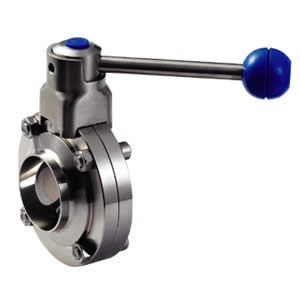

Sanitary Ss304/Ss316 Welded Butterfly Valve
| Price: |
US $ 22/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Sanitary Butterfly ValveSanitary Stainless Steel Ss Butterfly Valveclamp ended sanitary quick install butterfly vavle1) Specification: DN15-200 & 1/2''-8''
2) Standard: DIN, SMS, ISO, 3A, BPE, CMP, IDF
3) Material: Stainless steel 304, 316L
4) Connection: Welded, quick-installed, threaded
5) Polish: Mirror polish, dull polish, sub-light, 240G, 400G, tumble.
6) Applications: Pharmacy, beer, food, petroleum, dairy beverage, cosmetics
A full range of sanitary butterfly valves for use in different process are available. Designed
Stainless Steel Butterfly Valves. Double-eccentric kinematics, and all stainless steel bodies and trims guarantee high performance corrosion resistant service
Stainless steel hygienic butterfly valves
|
Standard |
3A, DIN, IDF, SMS etc. |
|
Size |
DN15- 150 & 1/2" - 8 " |
|
Material |
SS304, SS316L |
|
Body/Disk |
Made by Forged material, fully precision machined by CNC machine. |
|
Gaskets |
Silicone, EPDM, Telfon |
|
Connection |
Welding, clamp, thread and flange |
|
Handle |
Manual, 2/3/4-position pulling handle, multi-position plastic/stainless steel handle, 12 position gear handle. (can be produced by requirements ) |
|
Surface Treatment |
180-420 Grit or unpolished |
|
Quality/Certificate |
ISO 9001 |
|
Temperature |
-10 degree to 200degree |
|
Special product |
As per the requirements of customers |
|
Applications |
Food, dairy, beverage, beer, wine, pharmacy, biology and chemical industry. |
|
Other Choice |
Pneumatic valve and Electric valve (100% Tested /100% Inspected) |
|
Service |
P rompt quotation, competitive price, punctual delivery and guaranteed quality |
| Prod Model: |
KQ-BV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Butterfly Vavlesizes: |
1/2" to 8" |
| Sanitary Mirror Polished Butterfly Vavle: |
for Pharmacy, Food Pipe Connections |
| Food Grade Butterfly Valves: |
Stronge Supply Ability |
| Sanitary Butterfly Vavle: |
Used in Food Liquid, Pharmacy Liquid, Chemical Liq |
| Butterfly Vavle Clamped: |
Clamp Supplied |
| Sanitary Butterfly Vavle Material: |
Ss 304/316 |
| Butterfly Vavle Polish: |
Mirror Polish |
| Butterfly Vavle Gasket: |
Silicon/PTFE |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Material Of Seal Surface: |
Soft Sealed |
| Connection Form: |
Welding |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Application: |
Industrial Usage |
Shanghai Kaiquan Machine Valve Co., Ltd., located in the South of Shanghai, is a modern enterprise which integrates scientific research and production. We are one of the few manufacturers which are capable of producing high-precision stainless steel sanitary equipment and pipeline connection parts.
Our products adopt production craft and technology from the EU. Meanwhile, we import foreign advanced numerically controlled machine tools and other process/inspection units. Our company specializes in producing sanitary stainless steel fluid equipment, valves and pipeline connection units. All the products are strictly manufactured according to different standards (such as ISO, DIN, IDF, SMS and 3A). With the efforts of all scientific research personnel, we are keeping on developing new products. Our products are widely used in the fields of food, pharmaceuticals, dairy, beer, beverage and chemical industry. All the technical aspects have reached the international leading levels and are in conformance with GMP requirements. Large quantities of our products are exported to the USA, Europe, the Middle East, Southeast Asia and other countries and regions all over the world.
"Honesty, open-minded and development" is our operation conception. We will appreciate clients' support and valuable suggestions. All those inspire KAIQUAN people to perfectly combine high-quality materials, sophisticated designs, strictly manufacture process and quality assurance systems. The trust of our clients makes us provide them with the best products.
Our mission: Devoted to Human Being's health
Our target: Developing superior technology and pursuing excellence
Our culture: Innovation, unity and practicality.
With full passions, KAIQUAN welcomes your participation and sincerely awaits your visiting!
