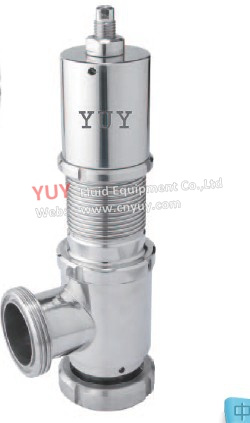

Sanitary Ss304/Ss316L Safety Valve Thread Connection Adjustable Pressure

Sanitary Ss304/Ss316L Safety Valve Thread Connection Adjustable Pressure
Price: US $ 200/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union

Specifications



sanitary pneumatic( manual ) safety / relief valve

HS Code:84818010





TECHNICAL PARAMETER:

Application:

The valves are used in automation and contronl systems to control the pressure, flow, level,t emperature and the tank level.



Working principle:



This sery safety valve is to adjust the spring compression nut to calibrate a particular pressure .The calibration of pressure is to fix the maximum pressure to avoid the quipement damage .In the normal working operating pressure ,the valve is closed ;when the system pressure exceeds the calibrated pressure ,the valve is closed ;whne the system presure exceeds the calibrated pressure ,the valve is open .The pressure in the piping system being released ,so as to protect the pipe system and the equipment .The valve is with start the open device for the CIP cleaning of the safety valve and the piping .

The safety valve is a special valve through a rigorous calibration,but to make the valve more realistic operating conditions,so the conditions should be as much as possible the scene of the valve and then parity .


Advantages :

with simple structure,good shape ,fast to adjust the pressure ,easy to maintenance
Pressure contronl is adjustable ,and can be adjusted in the safety range .
The valve body made of stainless steel can bear acid ,the surface is bright and clean ,the sealing made of food rubber ,comply with the sanitary regulations.
When install,we can not reverse the flow of fluid input .





Material:

material contact Steel parts:      Stainless 304\316L
valve core seal selection:a)soft seal:     EPDM. (standard)

                                                               SILICON,FDM, HNBR(CHOOSE).

                                               b)metal seal



Data:

working pressure:≤6bar
pressure contronl range :0.5~6bar
Norminal diameter:DN25~DN50
sealing:food rubber
medium temperature:-10ºC~+120ºC
medium: liquid material,gas



Advantages:



Connection types:



  1. Welded.
  2. Clamped
  3. Screw or threaded
  4. welded - srew
  5. Flange

To assure the connection and substitution with imported facilities, all the connecton styles withe pipe or equipment are made to DN11850, IDF / ISO, SMS 3A  international standard size.





Size:

  1. DIN:    DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
  2. 3A:        3/4", 1", 1 1/2", 2", 2 1/2", 3", 4"
  3. SMS:   19, 25, 32, 38, 51, 63, 76, 89, 102
  4. ISO:    ?19, ?25, ?32, ?38, ?51, ?63, ?76, ?89, ?102,





Surface treatment

        surface treatment :sandblasting Ra≤1.6um
                                            cast sub-light Ra≤0.6um
        inside surface treatment:polishing Ra≤0.6um



Operation Type:



  1. Manual:                         lever or duck-billed
  2. Pneumatic actuator:    stainless teel or plastic with control box or not.
  3. Electric actuator:         sigle action or double action

Features of Pneumatic actuator:

  1. Normally opened : the spring is OPEN and pneumatic OFF
  2. Normally closed:the spring is OFF and pneumatic OPEN
  3. With signal feedback inductive proder / sensor for option
  4. Compact appearance, small volume, large torgue
  5. Simple and convenient assembly

Technical Parameter:

  1. OD Range:                            DN25~ DN200, 1"~ 8"
  2. Anti-pressure:                       10Bar
  3. Compressed Air supply:        MIN:4 BAR,    MAX:8BAR
  4. Pneumatic Actuator torgne: 40Nm
  5. Finishing degree:

              Cutting: Ra1.5 ~ 3.2um

              Polish:  Ra0.4~ 0.8um

 Specifications of  Sanitary Safety / relief Valve:

1.Diameter of the valve:



a) YAK Castleman Safety valve:





b) YAP common safety valve:

Prod Model: YA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Pressure: ≤6bar
Pressure Control Range: 0.5-6bar
Size: Dn25-Dn50
Sealing: Food Rubber
Medium Temperature: From -10degree Centigrade to+120degree Centigrade
YUY Fluid Equipment Co., Ltd, located in Wenzhou, is one of the few domestic manufacturers of high precision fluid equipments.

YUY is specialized in Manufacturing

Sanitary Pumps

Sanitary Valves

Sanitary Pipe fittings etc.,

Which can be widely used in food, beer, beverage, dairy products, cosmetic, pharmacy and biology engineering field.

For that our products will be applied in the fluid systems with strict sanitary and sterilizing requirement, so we do have many strict tests for our products, such as the performance curve test of pumps, frequency curve, the smooth and clean test, pressure test and so on.

All the commodities are made in accordance with the standards of ISO, IDF, DIN and 3A. The technology is comparable to the international level in the same field and the quality complies with the requirements of GMP. And the production of YUY is based on advanced manufacture technology and a high sense of responsibility, so that we can provide our customers the products with high quality and high precision.

In addition, our R&D department can explore new products according to out customers' particular requirement. And our production capacity is very great and efficiency, so we can supply the products with best delivery date.

Under the principle of that "the customers are our best inspectors; The market is the most impartial judge of enterprises; Our mission is to provide good quality products with competitive price and satisfactory service for our customers "YUY believe that our honesty, enthusiasm and enterprise will win your support. We are looking forward to starting cooperation, and establish mutual-benefit relationship with our customers, and reach win-win.

Come, and join us!
