TECHNICAL PARAMETER:
1.Application:

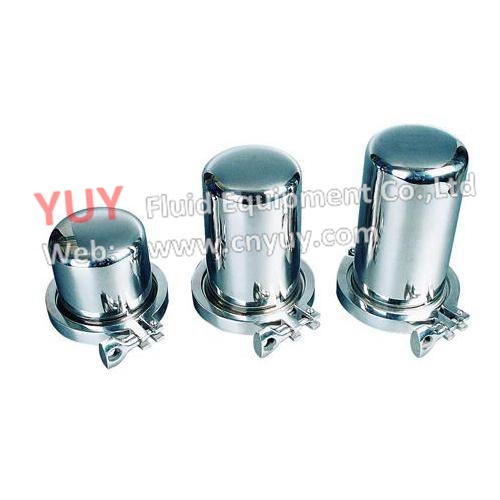

With the principle of filter filtering, to prevent the tank level drops by inhalation of airborne, dust parties of the air outside get into the tank to ensuire the cleaness of the air inside the tank.
2.Material:
Housing material: Stainless steel 304 or stainless steel 316L.
Sealing Material: nitrile rubber, PTFE
3.Connection types:
Welded.
Clamped
Screw or threaded ( male or female )
welded - srew
Flange
To assure the connection and substitution with imported facilities, all the connecton styles withe pipe or equipment are made to DN11850, IDF / ISO, SMS 3A international standard size.
4.Size:
DIN: DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
3A: 3/4", 1", 1 1/2", 2", 2 1/2", 3", 4"
SMS: 19, 25, 32, 38, 51, 63, 76, 89, 102
ISO: ?19, ?25, ?32, ?38, ?51, ?63, ?76, ?89, ?102,
5.Data:
OD Range: DN25~ DN200, 1"~ 8"
Material pressure: less than 0.6mpa
Working tempreature: -20°C~+135°C
Flux: 0.75m3/min, 1.5m3/min, 3m3/min,
The roughness of the surface is Ra<=0.4um
The inside surface is polished
